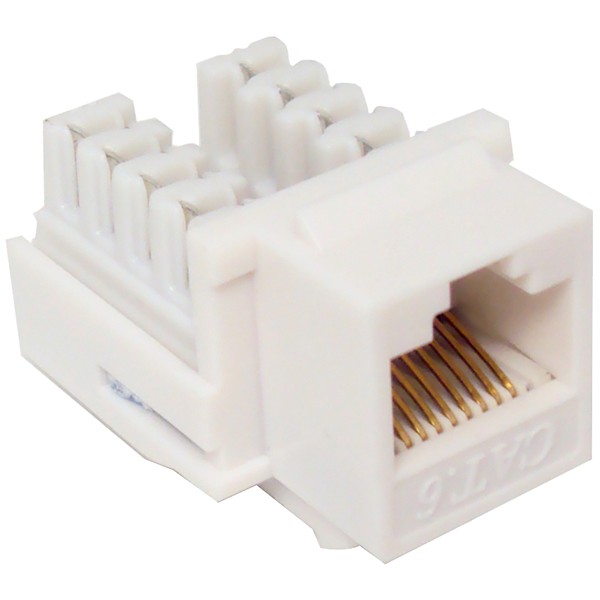

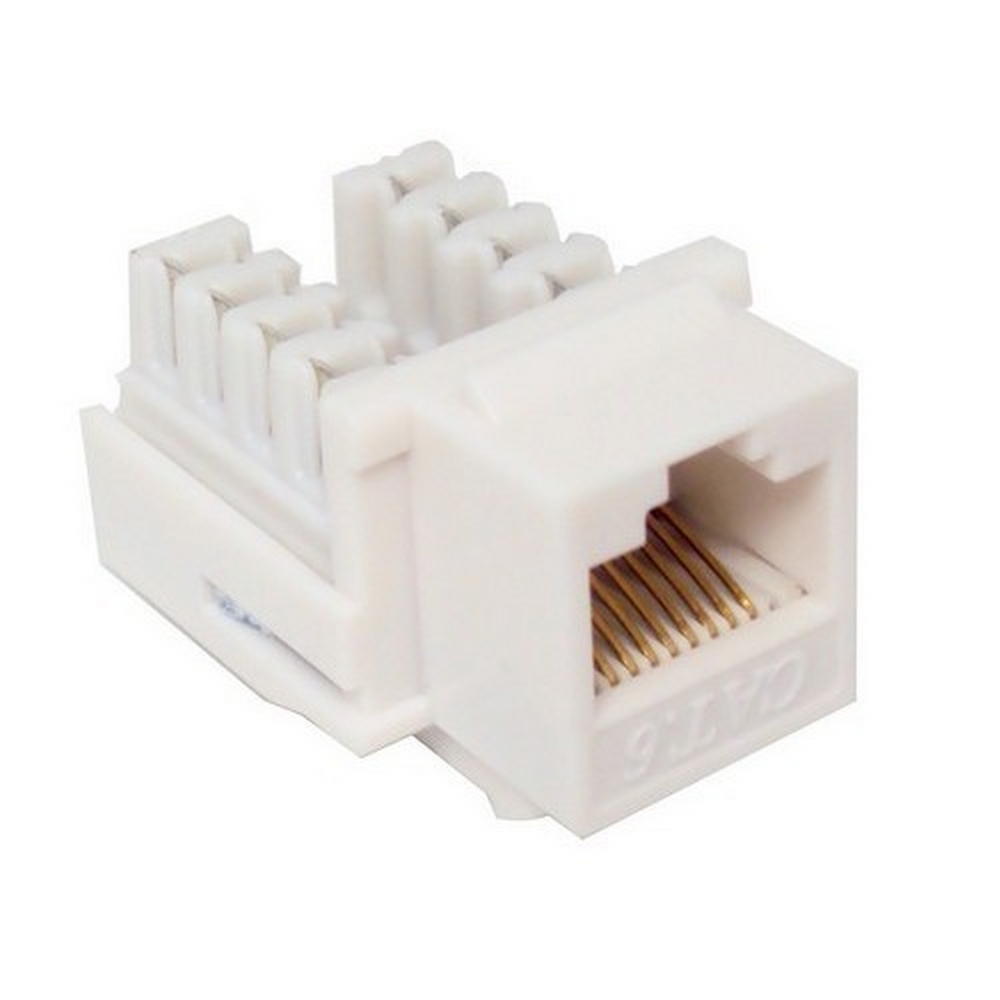

Morris 88421 is a color-coded Cat6 Keystone Jack designed for high-speed datacommunications applications. This keystone jack is engineered to deliver superior performance, ensuring optimal signal integrity across your network. With enhanced characteristics such as lower insertion loss, return loss, and improved Near-End Crosstalk (NEXT) and Far-End Crosstalk (FEXT), you can count on more reliable data transmission and higher signal-to-loss ratios. Operating at a bandwidth of 250 MHz, the Morris 88421 supports a remarkable data transmission rate of up to 10,000 Mbps (10 Gbps), making it an excellent choice for modern networking needs. The 110 punch down and Krone type termination methods offer versatility, accommodating both solid and stranded wire in the 22-26 AWG range. Compliance with TIA/EIA-568-C-2 and ISO 1801 2nd Edition Class E ensures its suitability for professional installations. Constructed with 50u gold-plated contacts, this keystone jack guarantees durability and reduces oxidation for long-lasting performance. Its UL94V-0 flammability rating provides an added layer of safety. Ideal for both commercial and residential applications, the Morris 88421 is UL listed, ensuring quality and reliability. For installation, a punch down tool is required.
A color-coded Cat6 Keystone Jack for Datacommunications applications.
Bandwidth: 10 Gbps 250MHz
Category: 6
Color: White
Country of Origin: China
Datacommunications Component Type: RJ45 Unshielded Keystone Jack
Description: Cat6 (RJ45) Unshielded Keystone Jacks White
Jack Connector Type: RJ45 UTP
Material: Polycarbonate Housing, Gold Plated Contacts
Mfg Standard: UL94V-0, Complies with TIA/EIA-568-A-5, ISO 1801 2nd Edition Class D, NEC Article 800
Termination Method: 110 Punchdown
Type: Cat 6 110 Type (RJ45) Unshielded Keystone Jacks 550 Mhz
Ul Listing: UL Listed
Upc: 601986884211
Warning: Cancer and Reproductive Harm
