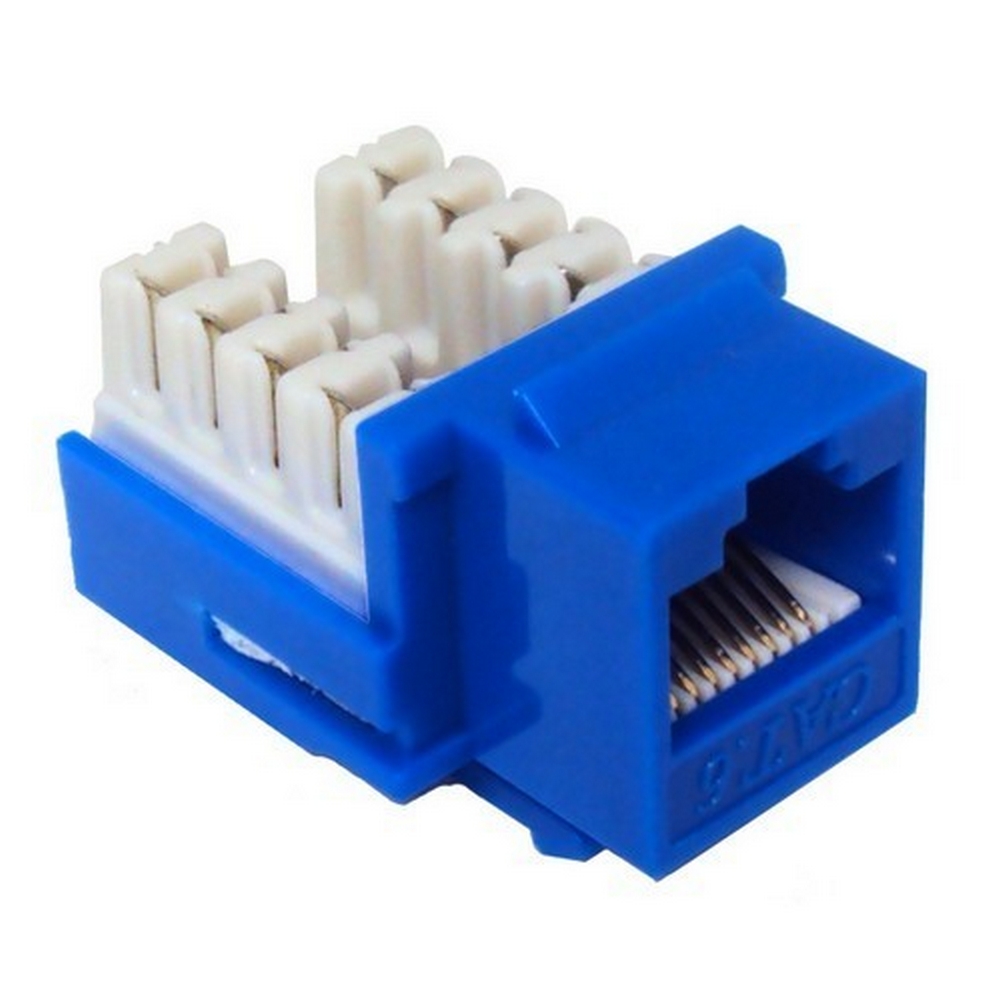

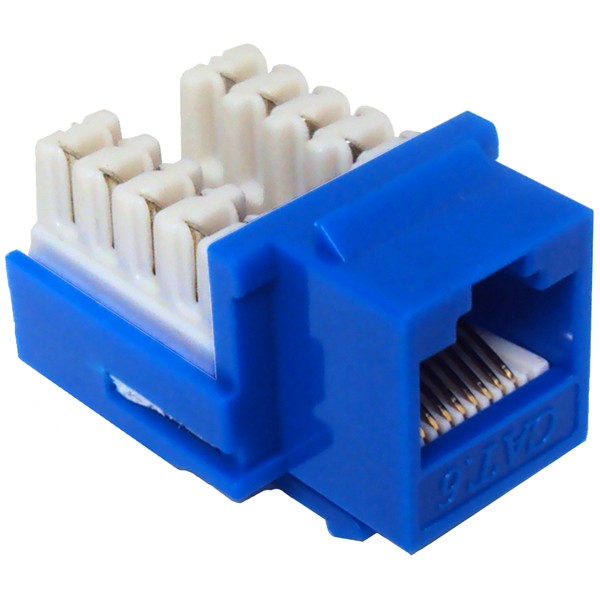

Morris 88422 Color-Coded Cat6 Keystone Jack for Datacommunications

Morris 88422 Cat6 Keystone Jack is designed for high-speed datacommunications applications, ensuring reliable network performance. This color-coded keystone jack adheres to industry standards, including TIA/EIA-568-C-2 and ISO 1801 2nd Edition Class E, making it an excellent choice for both residential and commercial installations. With a bandwidth of 250 MHz and a data transmission rate of up to 10,000 Mbps (10 Gbps), this keystone jack offers superior insertion loss, return loss, NEXT, and FEXT characteristics. These features contribute to higher signal-to-loss ratios, enabling a stable and efficient network connection. The jack accommodates both 22-26 AWG solid and stranded wire, and its 110 punch down and Krone type termination ensures quick and easy installation. Constructed with 50u gold-plated contacts for enhanced conductivity and a UL94V-0 flammability rating for safety, the Morris 88422 is UL listed, ensuring compliance with stringent safety standards. It conforms to TIA/EIA 568A and 568B wiring color codes for easy identification and installation. A punch down tool is required for termination, making this keystone jack an essential component for any data networking project.

A color-coded Cat6 Keystone Jack for Datacommunications applications.

• Flammability Rating: UL94V-0
• UL Listed
• Complies with TIA/EIA-568-C-2, ISO 1801 2nd Edition Class E, NEC Article 800
• Use Cat6 Keystone Jack for High Speed Datacommunications Applications
• CAT6 components provide better insertion loss, return loss & NEXT & FEXT characteristics, resulting in higher signal to loss ratios and a more reliable network
• 110 punch down & Krone Type Termination
• 8 Conductor 22-26 Awg Solid & Stranded wire
• Contacts have 50u Gold Plating
• Punch Down Tool Needed
• 10,000 Mbps (10 Gbps) Data Transmission Rate
• Conforms to TIA/EIA 568A & 568B Wiring Color Codes
• 250 Mhz Bandwidth
