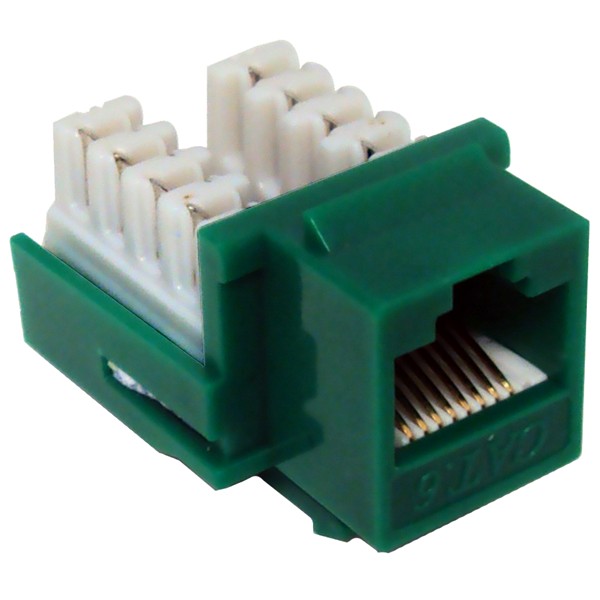

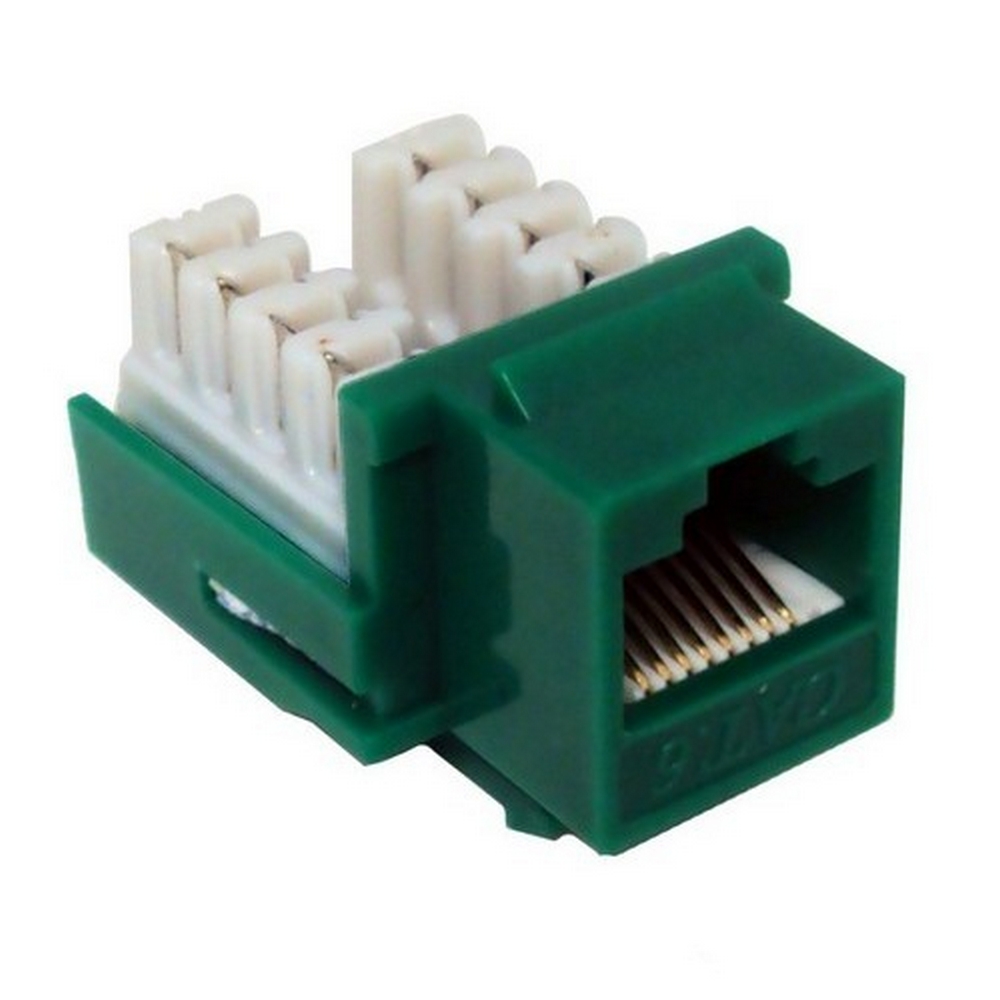

Morris 88426 Color-Coded Cat6 Keystone Jack for Datacommunications

Morris 88426 is a color-coded Cat6 Keystone Jack designed specifically for high-speed datacommunications applications. This keystone jack is engineered to enhance network reliability with superior insertion loss, return loss, and NEXT & FEXT characteristics. With a bandwidth of 250 MHz, it supports data transmission rates of up to 10,000 Mbps (10 Gbps), making it an optimal choice for both residential and commercial installations. Complying with TIA/EIA-568-C-2, ISO 1801 2nd Edition Class E, and NEC Article 800 standards, the Morris 88426 ensures that your networking setup adheres to the highest industry benchmarks. It features a 110 punch down and Krone type termination method, accommodating 8 conductor 22-26 AWG solid and stranded wires. The contacts are plated with 50u gold for improved conductivity, while its UL94V-0 flammability rating ensures safety in various environments. For installation, a punch down tool is required, and the jack conforms to TIA/EIA 568A and 568B wiring color codes for easy integration. UL Listed for quality assurance, the Morris 88426 combines functionality and compliance, making it an essential component for any reliable network system. With its striking green color, this keystone jack is not only practical but also visually distinct.

A color-coded Cat6 Keystone Jack for Datacommunications applications.

• Flammability Rating: UL94V-0
• UL Listed
• Complies with TIA/EIA-568-C-2, ISO 1801 2nd Edition Class E, NEC Article 800
• Use Cat6 Keystone Jack for High Speed Datacommunications Applications
• CAT6 components provide better insertion loss, return loss & NEXT & FEXT characteristics, resulting in higher signal to loss ratios and a more reliable network
• 110 punch down & Krone Type Termination
• 8 Conductor 22-26 Awg Solid & Stranded wire
• Contacts have 50u Gold Plating
• Punch Down Tool Needed
• 10,000 Mbps (10 Gbps) Data Transmission Rate
• Conforms to TIA/EIA 568A & 568B Wiring Color Codes
• 250 Mhz Bandwidth
