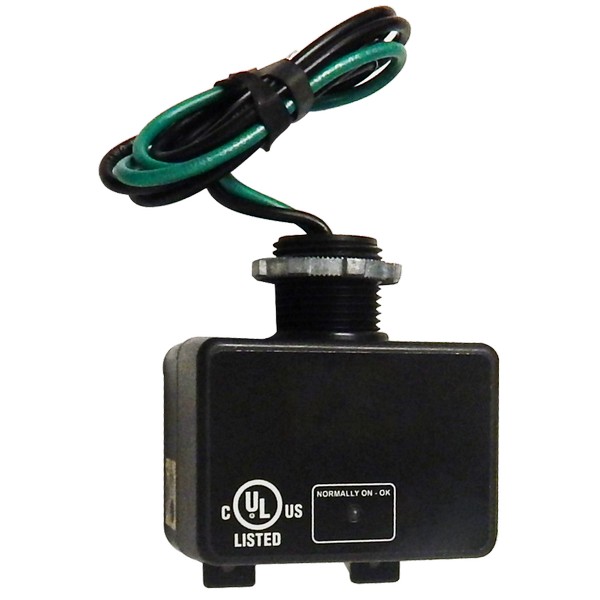

Morris 89114 Surge Protector protects a variety of home and office applications with reliable efficiency. Designed to be installed at the electrical disconnect or panel, this surge protector safeguards pumps, motors, HVAC condensers, and incoming utility power for both residential and light commercial environments. Featuring a hardwire parallel connection, it supports unlimited continuous current, making it a robust choice for demanding applications. The Morris 89114 boasts an impressive surge current rating of 75,000A and a short circuit current rating of 10,000A, ensuring optimal protection against power surges. With a response time of less than 1 nanosecond at the component level, this device quickly reacts to potential threats, while the automatic reset feature helps it recover from multiple surge events seamlessly. The unit operates at service voltages of 120/240 VAC and covers a frequency range of 0 to 400 Hz. Its black high-impact non-metallic housing, measuring 3" x 2.25" x 0.75", is built to withstand tough conditions. An indicator light provides real-time feedback on surge protection, grounding, and power status. cULus listed and compliant with UL 1449, 3rd Edition and ANSI/IEEE C62.11, the Morris 89114 is an essential addition for any electrical setup.
Our Surge Protector protects numerous home and office applications.
Color: Black
Country of Origin: Usa
Description: Whole-House Lightning Arrester/Surge Suppressor
Indicator Light: Yes
Material: ABS Non-Metallic Housing
Max Energy Dissipation: 940 Joules
Max Surge Current: 75,000Amps
Mfg Standard: UL1449 3rd Edition, ANSI/IEEE C62.11
Surge Current: 100,000 A
Surge Proctection Rating: 940 Joules, 72000A
Surge Protection: Yes
Type: Lightning Arrester / Surge Suppressor
Ul Listing: cULus Listed
Upc: 601986891141
Warning: Cancer and Reproductive Harm
Weatherproof: Yes
