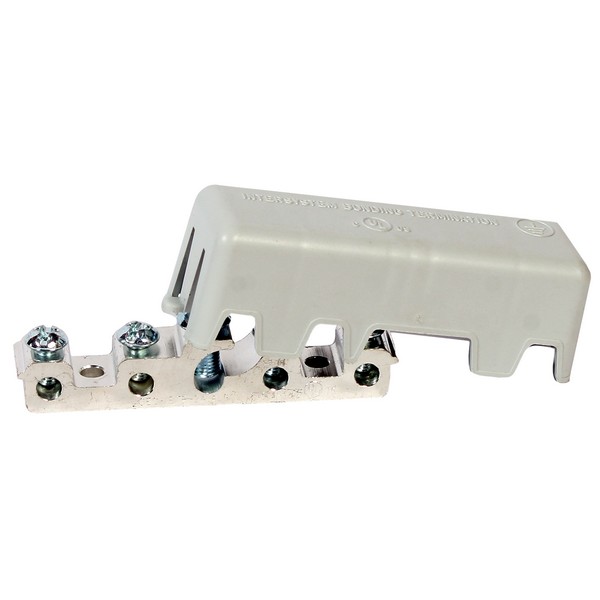

Morris 90588 Intersystem Bonding Connector accommodates all low voltage service grounds for bonding to the main ground electrode, making it an essential component for reliable electrical installations. Designed for fast and simple installation, this connector can be easily mounted on the ground conductor below the meter, streamlining your workflow. The innovative lay-in feature allows for termination to an existing main ground electrode without the need for cutting or splicing the conductor, saving you time and effort on the job site. Its open-faced design further enhances usability, enabling installers to quickly lay-in the grounding conductor as a jumper to multiple service grounds without interrupting the ground conductor continuity. With four bonding positions, the Morris 90588 effectively accommodates low voltage utility service ground wires ranging from #14 to #4 gauge, while the main ground wire can be connected from #6 to #2 gauge. Constructed from durable 6061-T6 aluminum, this connector is AL9CU dual rated for both copper and aluminum conductors. It features mild steel flush mount slot head screws and a UV-rated, paintable thermoplastic cover. UL467 listed, it meets NEC 2008 Section 250.94 requirements, ensuring compliance and safety in your electrical projects.
This Intersystem Bonding Connector accomodates all low voltage service grounds for bonding to main ground electrode
#6-#2: Low Voltage
Connector Type: Intersystem Bonding
Country of Origin: India
Description: Intersystem Bonding Connector
Direct Burial Rating: UL 467 Listed For Direct Burial & Grounding/Bonding Applications
Height: 1.40"
Length: 3.93"
Low Voltage Wire: #14 - #4
Main Ground Wire: #6 - #2
Material: Copper
Screw Type: Slotted
Type: Intersystem Bonding Connector
Ul Listing: cULus
Upc: 601986905886
Warning: Cancer and Reproductive Harm
Width: 1.19"
Wire Size: 6 - 2 Main 14 - 4 Branch
