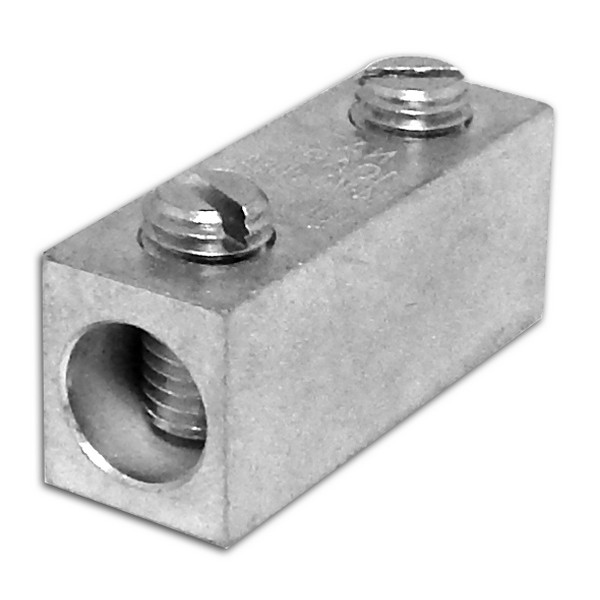

Morris 90612 Aluminum Splice for Copper Aluminum Cable - 2 Screw

Morris 90612 2 Screw Aluminum Splice for Copper and Aluminum Cable offers a reliable solution for connecting copper and aluminum conductors with ease. This aluminum splice reducer is AL9CU dual-rated, ensuring compatibility with both types of cables, making it a versatile choice for various electrical applications. Constructed from high-strength 6061-T6 aluminum alloy, it guarantees maximum strength and conductivity, essential for maintaining optimal performance in demanding environments. The splice features electro-tin plating, which not only reduces contact resistance but also provides robust protection against corrosion, ensuring longevity and reliability in your installations. With a voltage rating of 600 volts, the Morris 90612 is suitable for a wide range of projects, while its operational capacity extends to cables rated for temperatures up to 194°F (90°C). Designed for easy installation, this splice uses slotted screws, simplifying the connection process. Measuring 1.12 inches in length, 0.44 inches in width, and 0.5 inches in height, it can accommodate wire ranges from 2 to 14 AWG. cULus listed for safety and performance, this product embodies the quality and reliability that professionals expect from Morris Products, making it an essential addition to any toolkit.

2 Screw Aluminum Splice for Copper and Aluminum Cable.

• 90612~90614 use slotted screws
• AL9CU Dual Rated
• 600 Volt
• cULus Listed
• Electro Tin Plated to provide low contact resistance and protection against corrosion
• Aluminum Splice Reducer is AL9CU Dual Rated for both Copper and Aluminum Conductors
• Rated for use with Cables up to 194°F(90°C)
• 2 Screw Aluminum Reducer is rated 600 Volts
• Dimension Measurements = Inches
• Manufactured from High Strength 6061-T6 Aluminum Alloy to ensure both Maximum Strength and Conductivity

Resources

• Catalog PDF page
• Spec Data Sheets
• Spec Sheet
