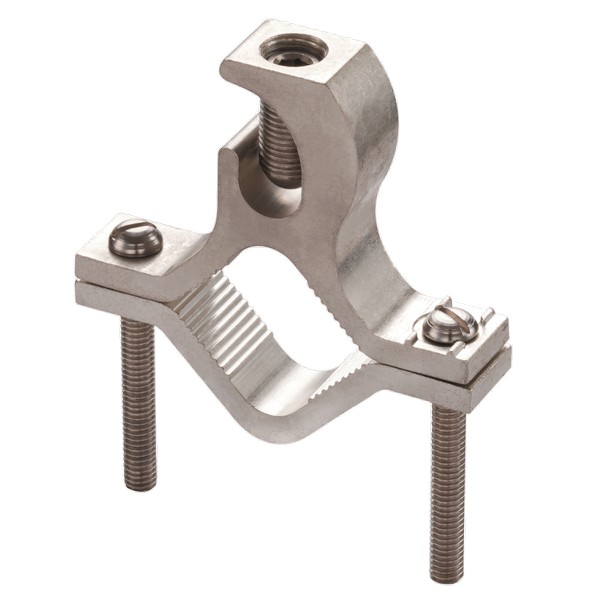

Morris 90635 Tin-Plated Aluminum Ground Pipe Clamps for Grounding Pipes and Rods

Morris 90635 Tin-Plated Aluminum Ground Pipe Clamps provide reliable solutions for grounding pipes, conduits, and ground rods. These clamps are designed for seamless connections between copper or aluminum ground electrodes and various types of piping, including water pipes, ground rods, and galvanized or steel conduits. Crafted from high-strength 6061-T6 aluminum alloy, these clamps are tin-plated to ensure minimal contact resistance and outstanding corrosion protection. The dual-rated AL9CU feature makes them suitable for both copper and aluminum conductors, enhancing their versatility in electrical applications. Each clamp is equipped with a tin-plated set screw, further enhancing resistance to corrosion. Morris 90635 clamps accommodate a pipe range of 1/2" to 1", making them adaptable for various installations. The included zinc-plated steel mounting hardware ensures a secure fit and long-lasting performance. With a side screw size of 1/4"-20 x 1.50" and a top screw size of 7/16" x .55", these clamps are easy to install and maintain. cULus listed for safety and performance, these clamps meet rigorous industry standards. Whether you're working on a residential, commercial, or industrial project, Morris 90635 Tin-Plated Aluminum Ground Pipe Clamps are an essential component for effective grounding solutions.

Tin-Plated Aluminum Ground Pipe Clamps for use in Grounding Pipes Conduits and Ground Rods.

• AL9CU Dual Rated for Copper or Aluminum Conductors
• Aluminum Ground Pipe Clamps are Tin Plated for low contact resistance and corrosion protection
• Tin-Plated Aluminum Set Screw for Corrosion Resistance
• cULus Listed
• Zinc Plated Steel Mounting Hardware
• Tin-Plated Ground Clamps manufactured from high strength 6061-T6 Aluminum alloy
• For Connecting Copper or Aluminum Ground Electrode to water pipe, ground rod, copper water pipe, galvanized pipe or steel conduit

Resources

• Catalog PDF page
• Spec Data Sheets
• Spec Sheet
