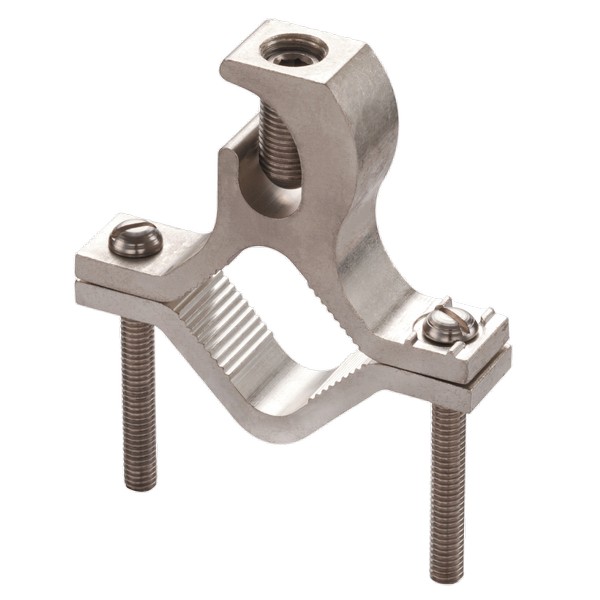

Morris 90637 Tin-Plated Aluminum Ground Pipe Clamps provide a reliable solution for grounding pipes, conduits, and ground rods. Designed to connect copper or aluminum ground electrodes to water pipes, ground rods, copper water pipes, galvanized pipes, or steel conduits, these clamps ensure a solid electrical connection. The AL9CU dual rating makes them suitable for both copper and aluminum conductors, catering to a wide range of applications. Manufactured from high-strength 6061-T6 aluminum alloy, these clamps feature a tin-plated finish that minimizes contact resistance and offers excellent corrosion protection. The tin-plated aluminum set screw further enhances durability, ensuring a long-lasting performance in various environments. The included zinc-plated steel mounting hardware provides added strength and reliability. With a pipe range of 2-1/2" to 4", the Morris 90637 clamps accommodate various installations. The side screw size of 5/16"-18 x 2.17" and top screw size of 5/8"-18 x 1.18" ensure secure fittings. Certified with cULus listing, these clamps meet stringent safety standards. Please note that there is a warning regarding cancer and reproductive harm associated with these products. Choose Morris 90637 Ground Pipe Clamps for dependable grounding solutions that stand the test of time.
Tin-Plated Aluminum Ground Pipe Clamps for use in Grounding Pipes Conduits and Ground Rods.
Al9cu Dual Rating: AL9CU Dual Rated
Connector Type: Gound Clamp
Country of Origin: India
Description: Aluminum Ground Pipe Clampss Lay-In 2-1/2"-4"
Finish: Electro-Tin Plated
Material: Aluminum
Pipe Range: 2-1/2"-4"
Pipe Size Range: 2-1/2"-4"
Side Screw Size: 5/16"-18 x 2.17"
Top Screw Size: 5/8"-18 X 1.18"
Type: Lay-In
Ul Listing: cULus
Upc: 601986906371
Warning: Cancer and Reproductive Harm
Water Pipe: 2-1/2"-4"
Wire Range: #6-250 MCM
Wire Size: #6-250 MCM
