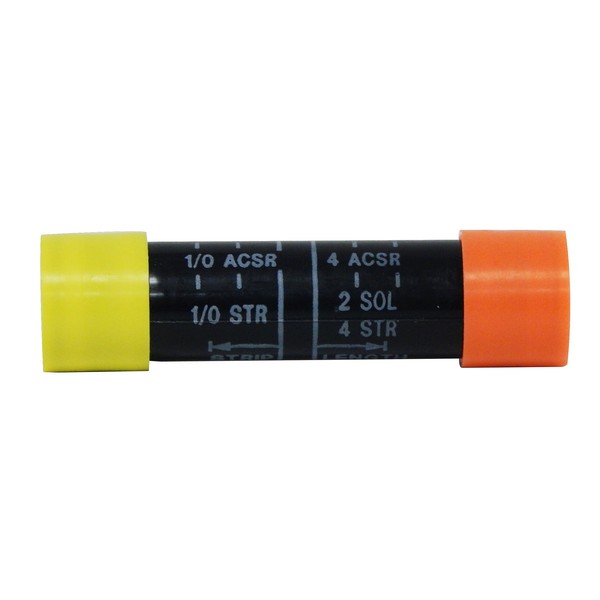

Morris 90674 High Conductivity Insulated Service Entrance Splices are expertly designed for electrical service installations, providing a reliable connection for standard conductors. These splices meet or exceed the Class A-3 requirements of ANSI C119.4 when properly installed on aluminum-to-aluminum or aluminum-to-copper conductors. Constructed with solid center barriers and large chamfers, they facilitate easy cable insertion, ensuring a smooth installation process. The oxide-inhibiting coating enhances durability, while the tough stabilized nylon sleeve resists installation tool pressure, delivering dependable 600 Volt insulation. Each splice is color-coded and clearly marked with catalog numbers, strip lengths, installing die references, and compression locations, simplifying the installation for professionals. Designed for versatility, the Morris 90674 splices accommodate various conductor sizes, including ACSR Cond A (1/0) and Cond B (#4), while offering solid and stranded conductor compatibility. RUS approved and ANSI C119.4 compliant, these splices are a trusted choice for both residential and commercial applications. Please note the warning regarding cancer and reproductive harm. With the Morris 90674, you can be assured of quality and performance in every electrical service installation.
Our High Conductivity Insulated Service Entrance Splices are perfect for Electrical Service Installations
ACSR Cond A: 1/0
ACSR Cond B: #4
Color: Yellow
Color Code: Yellow/Orange
Color Cond A: Yellow
Color Cond B: Orange
Connector Type: Service Entrance Splice
Country of Origin: Usa
Description: Insulated Service Entrance Compression Splices 2-25/32" UYO 04 1/0 Str to #4 & Str #2 Sol
Insulation Type: Nylon
Material: 6061-T6 Aluminum
Mfg Standard: ANSI C119.4 Compliant RUS Approved
Model: UYO 04
Solid Cond A: -
Solid Cond B: #2
Strand Cond A: 1/0
Strand Cond B: #4
Type: Insulated Service Entrance Splices 2-25/32"
Upc: 601986906746
Warning: Cancer and Reproductive Harm
Wire Range: 1/0-4
Wire Size: 1/0-4
