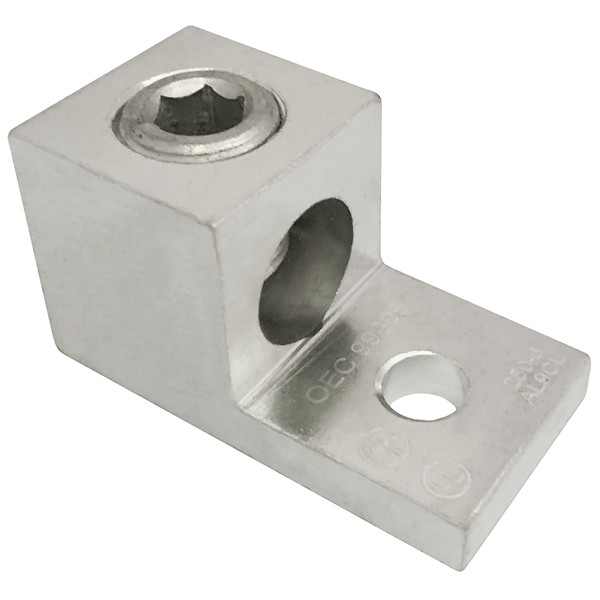

Morris 90722B Dual-Rated and Reusable One Hole Aluminum Conductor Lug is designed for versatility and reliability in electrical applications. Manufactured from high-quality aluminum, this lug is dual-rated for both copper and aluminum conductors, making it an excellent choice for various installations. The electro-tin plating ensures corrosion resistance, enhancing durability and performance over time. With a voltage rating of 600V and a temperature rating of 194°F (90°C), this lug is suitable for demanding environments. It is cULus listed, providing peace of mind regarding safety and compliance standards. The lug accommodates a wire range from 350MCM to 6SOL, catering to a wide array of conductor sizes. Measuring 2.25 inches in length, 1.26 inches in width, and 1.25 inches in height, this compact design allows for easy installation even in tight spaces. It features a 0.375-inch bolt size, ensuring a secure connection. The Morris 90722B is not only reusable but also simplifies maintenance and upgrades in electrical systems. Shipped via UPS, this product is ready to meet your needs swiftly. When you choose the Morris 90722B, you invest in a reliable component that ensures optimal performance in any electrical setup.
Dual-Rated and Reusable One Hole Aluminum Conductor Lug
AWG: 350
Al9cu Dual Rating: AL9CU Dual Rated
Bolt: 0.375"
Connector Style: Lug
Connector Type: Mechanical
Country of Origin: India
Description: Aluminum Mechanical Lugs One Conductor - One Hole Mount 350MCM-#6 Awg Bulk Box
Finish: Electro-Tin Plated
Height: 1.25"
Length: 2.25"
Material: Aluminum
Maximum Voltage: 600
Mfg Standard: UL 486B
Number Of Conductors: 1
Number of Holes: 1
Temperature Rating: 194oF 90oC
Type: Aluminum Mechanical Lugs One Conductor - One Hole Mount
Ul Listing: UL & CSA
Upc: 601986004466
Warning: Cancer and Reproductive Harm
Width: 1.26"
Wire Range: 350MCM - 6SOL.
Wire Size: 350MCM - 6SOL.
