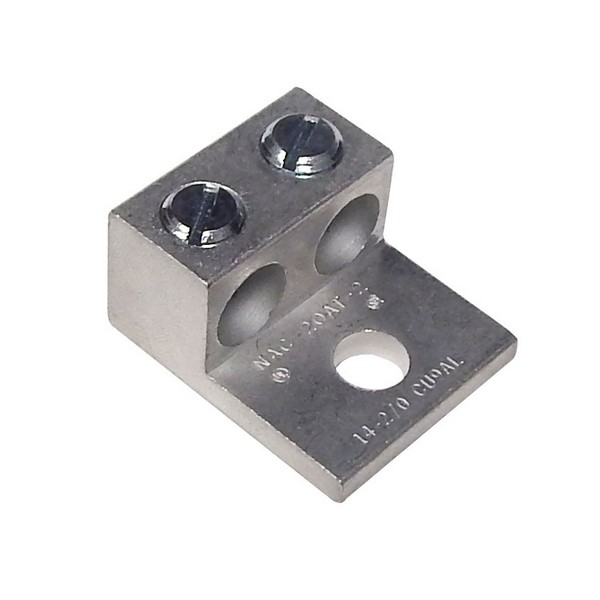

Morris 90812 One Hole Aluminum Mechanical Connectors for Flexible Installation

Morris 90812 One Hole Aluminum Mechanical Connectors provide flexibility in installation, making them an essential choice for electrical professionals. Crafted from durable aluminum and dual rated for both copper and aluminum conductors, these connectors ensure compatibility across a wide range of applications. The electro-tin plating enhances corrosion resistance, promoting longevity in various environments. Designed with slotted screws, the Morris 90812 connectors facilitate easy installation and secure connections. Rated for 600V and capable of withstanding temperatures up to 194°F (90°C), these connectors are built to meet the demands of both commercial and residential projects. The cULus listing confirms their adherence to safety standards, giving you peace of mind during installation. With a wire range accommodating 1/0 stranded to 14 solid conductors, these connectors are versatile enough for different wiring needs. Measuring 1.34 inches in length, 1.12 inches in width, and 0.69 inches in height, they fit neatly in tight spaces. The bolt diameter of 0.28 inches adds to their adaptability in various fittings. Whether you’re working on a new installation or conducting repairs, the Morris 90812 One Hole Aluminum Mechanical Connectors deliver reliability and efficiency. Elevate your electrical projects with this robust connector solution.

One Hole Aluminum Mechanical Connectors provide for Flexibility in Installation.

• Manufactured from Aluminum
• Has slotted screws
• cULus Listed
• Rated 600V 194°F (90°C)
• Electro-Tin Plated
• Dual Rated for both Copper and Aluminum Conductors

Resources

• Catalog PDF page
• Spec Data Sheets
• Spec Sheet
