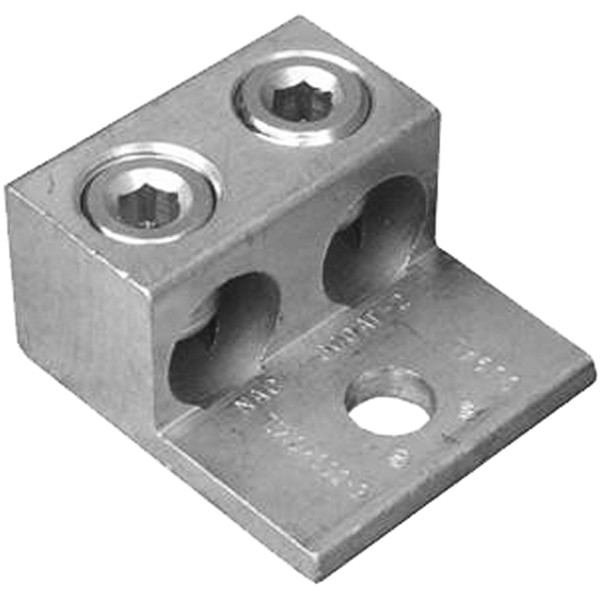

Morris 90820 One Hole Aluminum Mechanical Connectors provide flexibility in installation, making them an essential choice for any electrical project. These connectors are expertly manufactured from high-quality aluminum, ensuring durability and reliability in various applications. Dual-rated for both copper and aluminum conductors, they accommodate a wide range of wiring needs, enhancing versatility on the job site. Electro-tin plating offers added protection against corrosion, which is crucial for maintaining performance over time. Rated for 600V and capable of withstanding temperatures up to 194°F (90°C), these connectors are designed to meet demanding electrical standards. Their cULus listing further assures compliance with safety regulations, providing peace of mind for both contractors and DIY enthusiasts. The Morris 90820 connectors feature a wire range accommodating 600MCM to 2SOL, making them suitable for various wire sizes. With dimensions of 3.19" in length, 2.41" in width, and 1.56" in height, these connectors are compact yet robust. The 0.56" bolt size facilitates easy installation, ensuring a secure and reliable connection. Whether you're working on residential, commercial, or industrial projects, these connectors are a reliable choice that combines quality and performance seamlessly.
One Hole Aluminum Mechanical Connectors provide for Flexibility in Installation.
AWG: 600
Al9cu Dual Rating: AL9CU Dual Rated
Bolt: 0.56"
Connector Style: Lug
Connector Type: Mechanical
Country of Origin: India
Description: Aluminum Mechanical Lugs Two Conductors - One Hole Mount 600MCM-#2 Awg
Finish: Electro-Tin Plated
Height: 1.56"
Length: 3.19"
Material: Aluminum
Maximum Voltage: 600
Mfg Standard: UL 486B
Number Of Conductors: 2
Number of Holes: 1
Temperature Rating: 194oF 90oC
Type: Aluminum Mechanical Lugs Two Conductors - One Hole Mount
Ul Listing: UL & CSA
Upc: 601986908207
Warning: Cancer and Reproductive Harm
Width: 2.41"
Wire Range: 600MCM - 2SOL.
Wire Size: 600MCM - 2SOL.
