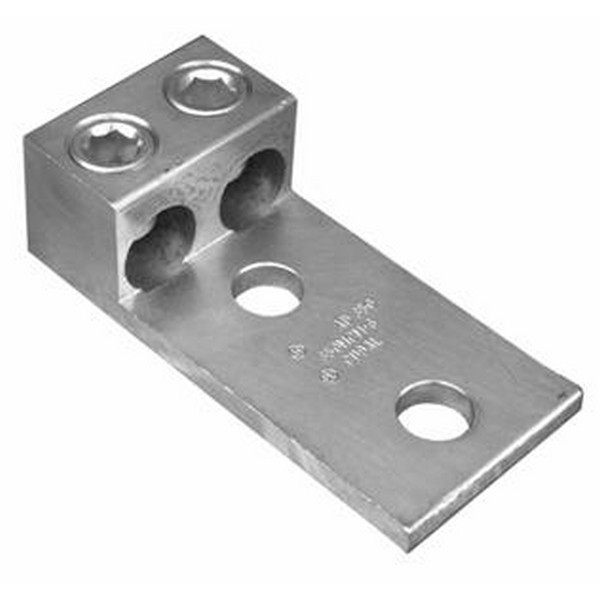

Morris 90844B Two Hole Aluminum Mechanical Connectors provide flexibility in installation, making them an essential choice for both residential and commercial applications. Manufactured from durable aluminum, these connectors are designed to ensure a reliable connection for your electrical needs. The dual-rated feature allows compatibility with both copper and aluminum conductors, enhancing versatility in various projects. Electro-tin plating on the connectors provides additional protection against corrosion, ensuring longevity and performance even in demanding environments. Rated for 600V and capable of withstanding temperatures up to 194°F (90°C), these connectors are built to meet the rigorous demands of electrical systems. The cULus listing guarantees compliance with recognized safety standards, giving you peace of mind during installation. With a wire range accommodating 600MCM to 2SOL, these connectors can handle substantial conductor sizes. Dimensions include a height of 1.51 inches, a length of 4.65 inches, and a width of 2.41 inches, with a bolt size of 0.56 inches for secure fastening. The Morris 90844B connectors ship easily via UPS, making them a convenient addition to your supply inventory. Choose Morris for quality and reliability in your electrical connections.
Two Hole Aluminum Mechanical Connectors provide for Flexibility in Installation
AWG: 600
Al9cu Dual Rating: AL9CU Dual Rated
Bolt: 0.56"
Connector Style: Lug
Connector Type: Mechanical
Country of Origin: India
Description: Aluminum Mechanical Lugs Two Conductors - Two Hole Mount 600MCM-#2 Awg Bulk Box
Finish: Electro-Tin Plated
Height: 1.51"
Length: 4.65"
Material: Aluminum
Maximum Voltage: 600
Mfg Standard: UL 486B
Number Of Conductors: 2
Number of Holes: 2
Temperature Rating: 194oF 90oC
Type: Aluminum Mechanical Lugs Two Conductors - Two Hole Mount
Ul Listing: UL & CSA
Upc: 601986004541
Warning: Cancer and Reproductive Harm
Width: 2.41"
Wire Range: 600MCM - 2SOL.
Wire Size: 600MCM - 2SOL.
