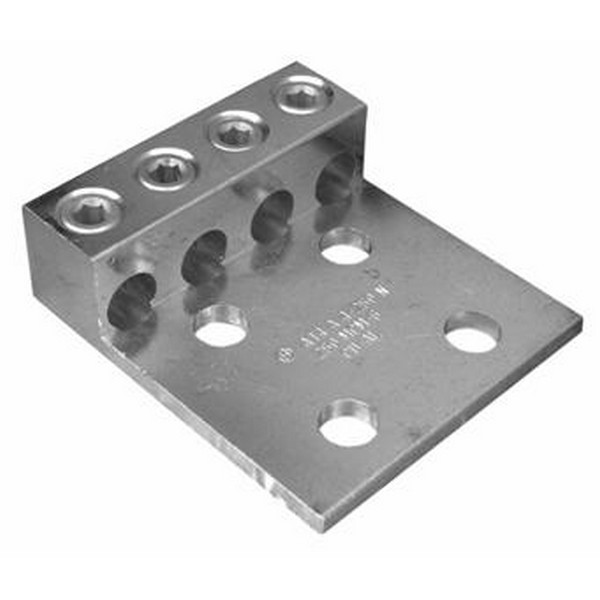

Morris 90880 Four Hole Aluminum Mechanical Connectors provide flexibility in installation, making them an essential choice for electrical professionals. Designed for optimal performance, these connectors are manufactured from high-quality aluminum, ensuring durability and reliability in various applications. With a dual rating for both copper and aluminum conductors, these connectors cater to a wider range of wiring needs, providing versatility on the job. The Morris 90880 connectors are electro-tin plated, which enhances their corrosion resistance, thereby extending their lifespan. Rated for use up to 600V and temperatures of 194°F (90°C), they can handle demanding environments with ease. These connectors are cULus listed, providing peace of mind that they meet rigorous safety standards. Measuring 4.94 inches in length, 6.19 inches in width, and 1.88 inches in height, with a bolt size of 0.56 inches, they accommodate a wire range from 1000MCM to 500MCM. The connectors can ship via UPS, ensuring quick delivery to your job site. Please note a warning about potential cancer and reproductive harm, emphasizing the importance of safety in all electrical installations. Choose Morris 90880 for reliable connections you can trust.
Four Hole Aluminum Mechanical Connectors provide Flexibility in Installation.
AWG: 1000
Al9cu Dual Rating: AL9CU Dual Rated
Bolt: 0.56"
Connector Style: Lug
Connector Type: Mechanical
Country of Origin: India
Description: Aluminum Mechanical Lugs Four Conductors - Four Hole Mount 1000MCM-500MCM
Finish: Electro-Tin Plated
Height: 1.88"
Length: 4.94"
Material: Aluminum
Maximum Voltage: 600
Mfg Standard: UL 486B
Number Of Conductors: 4
Number of Holes: 4
Temperature Rating: 194oF 90oC
Type: Aluminum Mechanical Lugs Four Conductors - Four Hole Mount
Ul Listing: UL & CSA
Upc: 601986908801
Warning: Cancer and Reproductive Harm
Width: 6.19"
Wire Range: 1000MCM - 500MCM
Wire Size: 1000MCM - 500MCM
