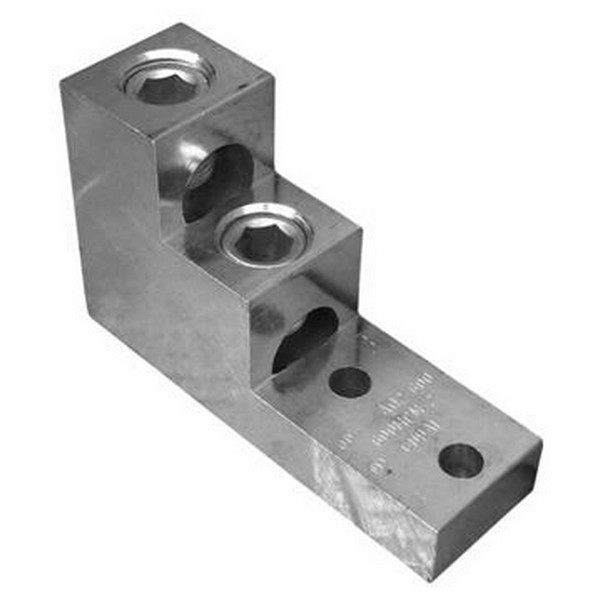

Morris 90914B Panelboard Lug offers a reliable solution for connecting two conductors with ease, thanks to its sturdy design featuring two mounting holes. Constructed from high-quality aluminum, this lug is dual rated for both copper and aluminum conductors, ensuring versatility for various electrical applications. The electro-tin plating enhances its durability and resistance to corrosion, making it suitable for long-term use in demanding environments. With a voltage rating of 600V and a temperature tolerance of 194°F (90°C), the Morris 90914B is engineered to perform efficiently under a range of conditions. The lug is cULus listed, providing peace of mind regarding its compliance with safety standards. Designed with a compact profile, the lug measures 4.92" in length, 1.50" in width, and has a height of 3.00". It accommodates a wire range from 600MCM to 2STR, making it adaptable for various wiring needs. The hole space of 1.38" and a bolt size of 0.375" further enhance installation flexibility. Ideal for residential, commercial, and industrial applications, the Morris 90914B Panelboard Lug ensures reliable connections and ease of installation, making it an essential component for any electrical project.
This Panelboard Lug features Two Conductors with 2 Mounting Holes.
AWG: 600
Al9cu Dual Rating: AL9CU Dual Rated
Bolt: 0.375"
Connector Style: Panelboard
Connector Type: Mechanical
Country of Origin: India
Description: Aluminum Mechanical Lugs Panelboard Lugs - 2 Conductors 2 Hole 600MCM-2 Bulk Box
Finish: Electro-Tin Plated
Height: 3.00"
Hole Space: 1.38"
Length: 4.92"
Material: Aluminum
Maximum Voltage: 600
Mfg Standard: UL 486B
Number Of Conductors: 2
Temperature Rating: 194oF 90oC
Type: Aluminum Mechanical Lugs Panelboard Lugs - 2 Conductors
Ul Listing: UL & CSA
Upc: 601986004565
Warning: Cancer and Reproductive Harm
Width: 1.50"
Wire Range: 600MCM - 2STR.
Wire Size: 600MCM - 2STR.
