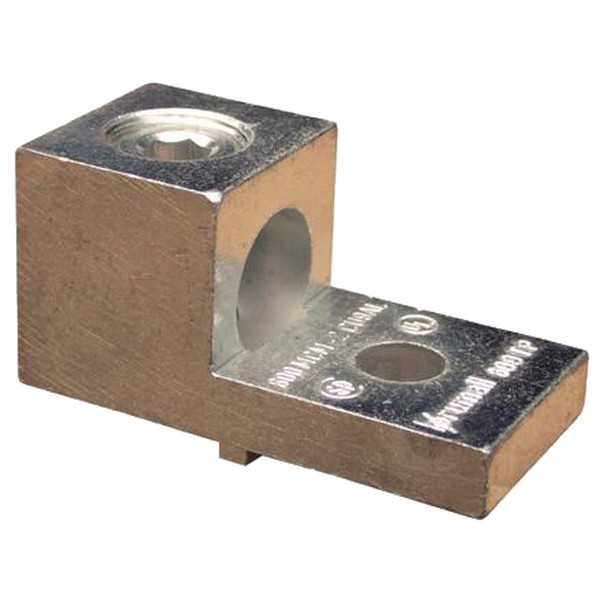

Morris 91311 Aluminum Turn Prevent Lugs for Connector Stability

Morris 91311 Aluminum Turn Prevent Lugs are expertly designed to enhance the stability of electrical connections. Featuring a unique turn prevent at the bottom of the tang, these aluminum set screw connectors minimize the risk of movement while tightening, ensuring a secure and reliable fit. Constructed from high-quality 6061-T6 aluminum alloy, these lugs are both lightweight and durable. The tin plating provides low contact resistance and exceptional corrosion protection, making them suitable for a variety of applications involving both copper and aluminum conductors. With a temperature rating for use with cables up to 194°F (90°C), they can handle demanding environments with ease. Rated for 600V and cULus listed, the Morris 91311 lugs boast a wire range of 1/0 to 14, making them versatile for different project needs. Each lug measures 1.46" in length, 0.63" in width, and 0.79" in height, with a bolt size of 0.25". The turn prevent is positioned 0.5" from the mounting hole center, ensuring precise installation. With these lugs, you can achieve dependable connections that stand the test of time, making them an essential addition to any electrical toolkit.

Aluminum Turn Prevent Lugs prevent movement of connector while tightening set screw.

• Aluminum Set Screw Connectors with a Turn Prevent on the bottom of the tang to eliminate potential movement of the connector
• 1 Conductor Turn Prevent lug rated 600V
• Made of 6061-T6 Aluminum Alloy
• cULus Listed
• Tin Plated for Low Contact Resistance and Corrosion Protection
• Suitable For use with both Copper and Aluminum Conductors
• Rated for Use with 194°F(90°C) Cables
• Dimension Measurements = Inches
