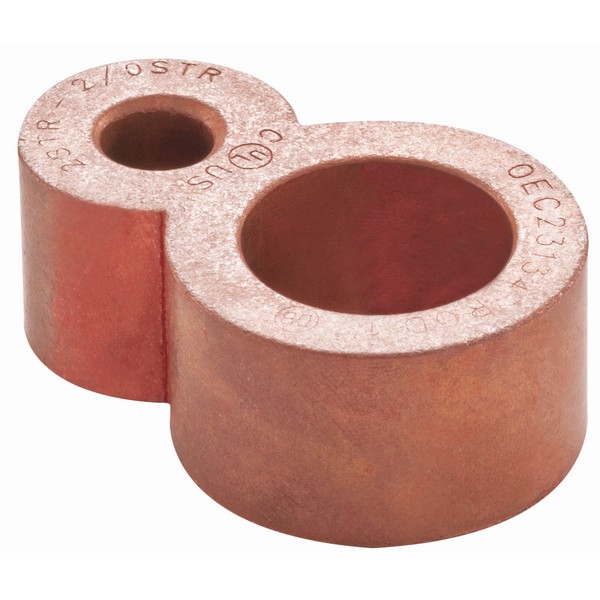

Morris 91502 Figure 8 Irreversible Grounding Connectors for Direct Burial

Morris 91502 Figure 8 Irreversible Grounding Connectors are designed for reliable performance in demanding applications, ensuring safety and compliance in electrical installations. Crafted from pure electrolytic copper, these connectors exceed conductor current carrying capacity, making them a robust choice for grounding needs. These connectors are specifically approved for direct burial in both earth and concrete, which enhances their versatility in various environments. They provide a dependable tap or pigtail-type connection from ground rods to grounding counterpoise or grid, ensuring optimal grounding solutions for your projects. The Morris 91502 is also suitable for use with Copperweld® or copper-clad cable, further broadening its usability across different wiring systems. With a wire range accommodating #2 to 2/0, these connectors are versatile enough to meet various installation requirements. Their compact dimensions, measuring 0.88 inches in depth and 1.97 inches in height, allow for easy integration into tight spaces. Additionally, they are designed to work seamlessly with 5/8-inch rod or rebar. Please note that these connectors come with a warning regarding cancer and reproductive harm, so appropriate safety measures should be considered during handling. For a secure and effective grounding solution, trust Morris 91502 Figure 8 Irreversible Grounding Connectors to deliver reliability when you need it most.

Figure 8 Irreversible Grounding Connectors are acceptable for direct burial in earth and concrete

• Provides a tap or pigtail-type connection from ground rods to grounding counterpoise or grid
• Made of Pure Electrolytic Copper - matches or exceeds conductor current carrying capacity
• Suitable for use on Copperweld� or copper clad cable
• Acceptable for direct burial in earth and concrete
