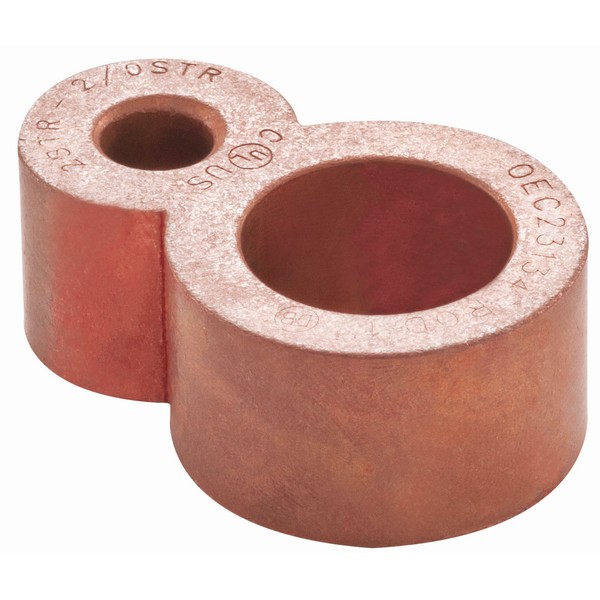

Morris 91506 Figure 8 Irreversible Grounding Connectors for Direct Burial

Morris 91506 Figure 8 Irreversible Grounding Connectors are engineered for reliability, making them an ideal choice for grounding applications requiring direct burial in both earth and concrete. Crafted from pure electrolytic copper, these connectors match or exceed the current carrying capacity of standard conductors, ensuring optimal performance in various environments. Designed to facilitate a tap or pigtail-type connection from ground rods to a grounding counterpoise or grid, the Morris 91506 is versatile and suitable for use with Copperweld® or copper-clad cables. This adaptability makes it a go-to solution for professionals in the electrical field. Measuring 2.55 inches in height and 0.88 inches in width, this connector fits seamlessly into tight spaces while accommodating a wire range of #2 to 2/0. Its compatibility with 1-inch rods or rebar further enhances its utility in various installations. For peace of mind, the Morris 91506 is certified for direct burial, ensuring durability and long-lasting performance in demanding conditions. Please note, caution is advised as this product carries a warning for cancer and reproductive harm. With the convenience of UPS shipping, the Morris 91506 Figure 8 Irreversible Grounding Connector is a practical addition to any builder's toolkit.

Figure 8 Irreversible Grounding Connectors are acceptable for direct burial in earth and concrete

• Provides a tap or pigtail-type connection from ground rods to grounding counterpoise or grid
• Made of Pure Electrolytic Copper - matches or exceeds conductor current carrying capacity
• Suitable for use on Copperweld� or copper clad cable
• Acceptable for direct burial in earth and concrete
