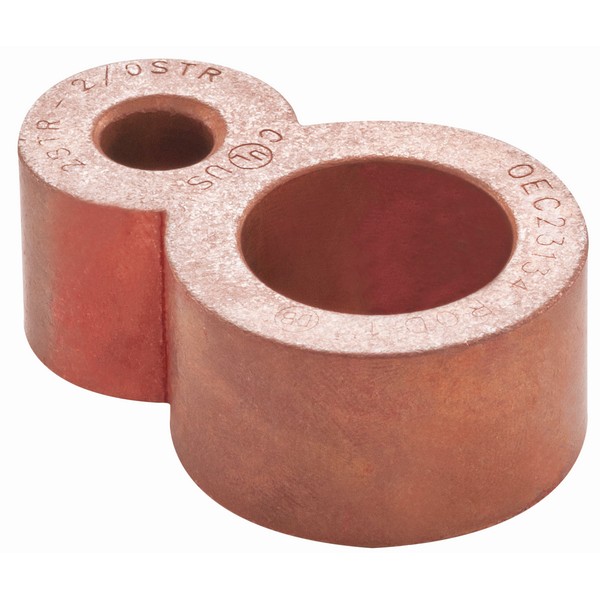

Morris 91512 Figure 8 Grounding Connectors for Direct Burial in Earth and Concrete

Morris 91512 Figure 8 Irreversible Grounding Connectors offer reliable and robust solutions for grounding applications, approved for direct burial in both earth and concrete. Crafted from pure electrolytic copper, these connectors match or exceed the current-carrying capacity of conductors, ensuring optimal performance in demanding conditions. Designed to provide a tap or pigtail-type connection, the Morris 91512 is perfect for connecting ground rods to grounding counterpoise or grid systems. This versatility makes it suitable for use with Copperweld® and copper-clad cables, enhancing its application scope across various projects. Measuring 2.14 inches in height and 0.88 inches in width, this connector is compact yet effective, accommodating wire ranges from 2/0 to 250. With a compatibility rating for 5/8-inch rods or rebar, it seamlessly integrates into existing grounding infrastructures. Additionally, the Morris 91512 is shipped via UPS, making logistics straightforward for contractors and builders. However, it’s essential to note that this product carries a warning for cancer and reproductive harm, underscoring the importance of proper handling and installation. Choose the Morris 91512 for a dependable grounding connection that stands the test of time.

Figure 8 Irreversible Grounding Connectors are acceptable for direct burial in earth and concrete

• Provides a tap or pigtail-type connection from ground rods to grounding counterpoise or grid
• Made of Pure Electrolytic Copper - matches or exceeds conductor current carrying capacity
• Suitable for use on Copperweld� or copper clad cable
• Acceptable for direct burial in earth and concrete
