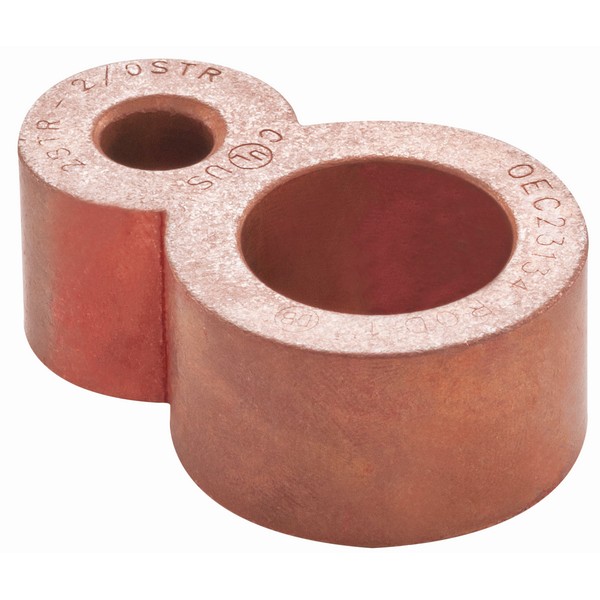

Morris 91520 Figure 8 Irreversible Grounding Connectors for Direct Burial

Morris 91520 Figure 8 Irreversible Grounding Connectors are engineered for reliable performance in grounding applications, including direct burial in earth and concrete. Constructed from pure electrolytic copper, these connectors not only meet but exceed the conductor current carrying capacity, ensuring dependable electrical connections. Designed to accommodate a range of grounding needs, the Morris 91520 provides a tap or pigtail-type connection from ground rods to grounding counterpoise or grid. This versatility makes it suitable for use with Copperweld® or copper-clad cable, offering flexibility in various project requirements. With a compact size of 2.14 inches in height and 0.88 inches in width, these connectors are easy to handle and install. The product supports wire ranges from 250 to 500, making it ideal for diverse grounding configurations. Additionally, it is designed for use with 5/8" rods or rebar, enhancing its functionality in grounding systems. As a note of caution, this product carries a warning for cancer and reproductive harm, so appropriate handling and installation practices are advised. For your convenience, the Morris 91520 connectors can ship via UPS, ensuring timely delivery to your job site. Trust Morris Products for quality and durability in all your electrical and grounding needs.

Figure 8 Irreversible Grounding Connectors are acceptable for direct burial in earth and concrete

• Provides a tap or pigtail-type connection from ground rods to grounding counterpoise or grid
• Made of Pure Electrolytic Copper - matches or exceeds conductor current carrying capacity
• Suitable for use on Copperweld� or copper clad cable
• Acceptable for direct burial in earth and concrete
