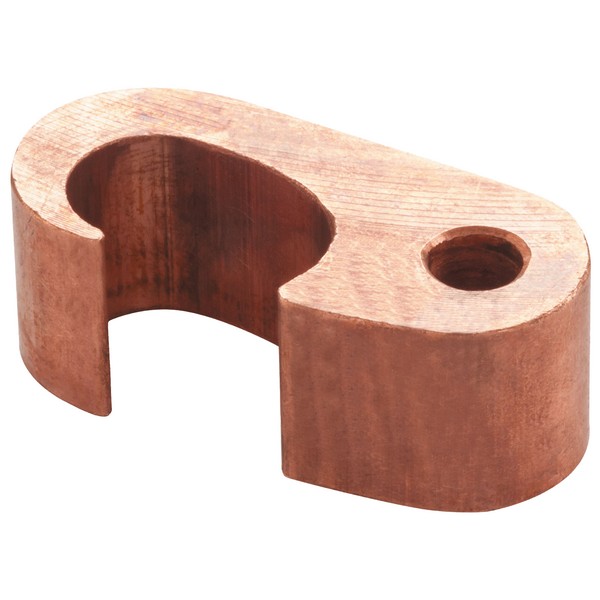

Morris 91530 Figure 6 Irreversible Grounding Connectors for Direct Burial

Morris 91530 Figure 6 Irreversible Grounding Connectors are engineered for reliable performance in demanding environments, making them an ideal choice for direct burial in both earth and concrete. Constructed from pure electrolytic copper, these connectors not only meet but exceed the conductor current carrying capacity, ensuring optimal conductivity and safety. Designed to facilitate a tap or pigtail-type connection from ground rods to grounding counterpoise or grid systems, the Morris 91530 offers versatility across various applications. It accommodates a broad conductor range from #6 through 500 kcmil, making it suitable for diverse wiring needs. Additionally, it supports use with Copperweld® or copper clad cables, enhancing its adaptability. These connectors are compatible with ground rod sizes of 1/2", 5/8", and 3/4", providing ease of installation and secure connections. With a compact depth of 0.88" and a height of 1.94", the Morris 91530 is designed to fit seamlessly into your grounding system. For added peace of mind, it’s important to note that this product carries a warning for cancer and reproductive harm, so appropriate safety measures should be taken during installation. Trust Morris Products for durable, high-quality electrical components that stand the test of time.

Figure 6 Irreversible Grounding Connectors are acceptable for direct burial in earth and concrete

• Provides a tap or pigtail-type connection from ground rods to grounding counterpoise or grid
• Ground rod sizes 1/2", 5/8", and 3/4"
• Made of Pure Electrolytic Copper - matches or exceeds conductor current carrying capacity
• Suitable for use on Copperweld� or copper clad cable
• Conductor range #6 through 500 kcmil
• Acceptable for direct burial in earth and concrete
