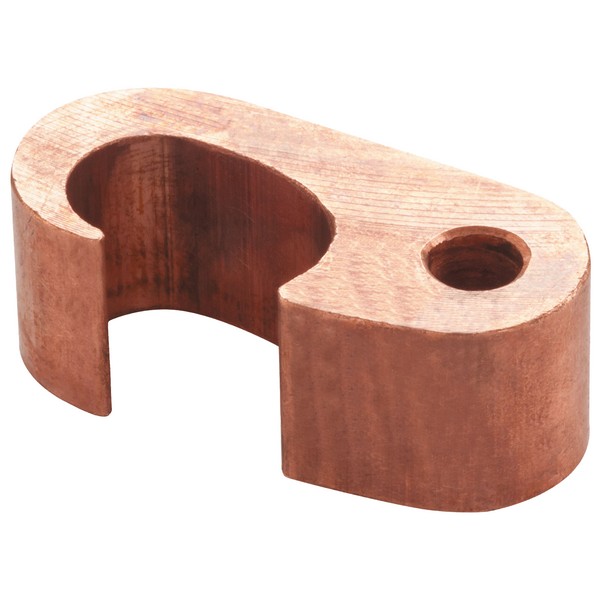

Morris 91540 Figure 6 Irreversible Grounding Connectors for Direct Burial

Morris 91540 Figure 6 Irreversible Grounding Connectors are designed for reliable performance in both earth and concrete applications. Constructed from pure electrolytic copper, these connectors ensure optimal conductivity and match or exceed the current carrying capacity of conductors. Their robust design allows for direct burial, making them ideal for secure ground connections in various environments. These connectors facilitate tap or pigtail-type connections from ground rods to grounding counterpoise or grid systems, accommodating a wide conductor range from #6 through 500 kcmil. They are particularly suitable for use with Copperweld® or copper-clad cable, providing versatility for different grounding needs. The Morris 91540 connectors can be used with ground rod sizes of 1/2", 5/8", and 3/4", ensuring compatibility with standard grounding installations. With a compact height of 1.40" and a width of 0.88", these connectors are easy to handle and install. They are also compatible with rebar sizes ranging from #3 (3/8") to #4 (1/2"), which adds to their utility in varied grounding applications. Please note that there is a warning regarding cancer and reproductive harm. Trust Morris Products for quality grounding solutions that stand the test of time.

Figure 6 Irreversible Grounding Connectors are acceptable for direct burial in earth and concrete

• Provides a tap or pigtail-type connection from ground rods to grounding counterpoise or grid
• Ground rod sizes 1/2", 5/8", and 3/4"
• Made of Pure Electrolytic Copper - matches or exceeds conductor current carrying capacity
• Suitable for use on Copperweld� or copper clad cable
• Conductor range #6 through 500 kcmil
• Acceptable for direct burial in earth and concrete
