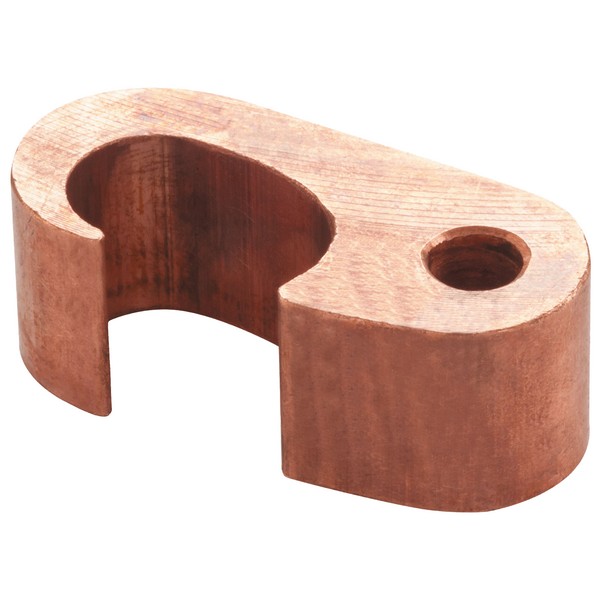

Morris 91542 Figure 6 Irreversible Grounding Connectors for Direct Burial

Morris 91542 Figure 6 Irreversible Grounding Connectors are designed for reliable performance in challenging environments, making them an excellent choice for electrical professionals. Constructed from pure electrolytic copper, these connectors match or exceed the current-carrying capacity of conductors, ensuring optimal conductivity and safety. Their robust design allows for direct burial in both earth and concrete, providing versatility for a variety of applications. These connectors facilitate tap or pigtail-type connections, effectively linking ground rods to grounding counterpoise or grid systems. They accommodate a conductor range from #6 through 500 kcmil, making them suitable for various grounding needs. Additionally, the Morris 91542 is compatible with Copperweld® or copper-clad cables, ensuring broad usability across different project requirements. With ground rod sizes of 1/2", 5/8", and 3/4", these connectors provide flexibility in installation. Their dimensions-0.88" in depth, 2.14" in height-allow for easy integration into existing systems. Please be aware of the associated warning regarding cancer and reproductive harm. For those needing reliable grounding solutions that can withstand the elements, the Morris 91542 Figure 6 Irreversible Grounding Connectors deliver the performance and durability you can trust.

Figure 6 Irreversible Grounding Connectors are acceptable for direct burial in earth and concrete

• Provides a tap or pigtail-type connection from ground rods to grounding counterpoise or grid
• Ground rod sizes 1/2", 5/8", and 3/4"
• Made of Pure Electrolytic Copper - matches or exceeds conductor current carrying capacity
• Suitable for use on Copperweld� or copper clad cable
• Conductor range #6 through 500 kcmil
• Acceptable for direct burial in earth and concrete
