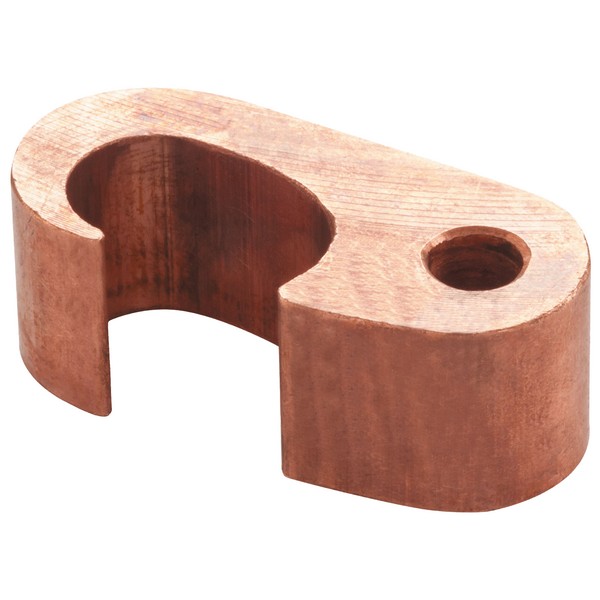

Morris 91546 Figure 6 Irreversible Grounding Connectors for Direct Burial

Morris 91546 Figure 6 Irreversible Grounding Connectors are engineered for reliable performance in both residential and commercial applications, allowing for direct burial in earth and concrete. Crafted from pure electrolytic copper, these connectors meet or exceed conductor current carrying capacity, ensuring exceptional conductivity and durability. These versatile connectors provide a convenient tap or pigtail-type connection from ground rods to grounding counterpoise or grid, accommodating a wide conductor range from #6 through 500 kcmil. They are suitable for use with Copperweld® or copper-clad cable, ensuring compatibility with various grounding systems. The connectors can efficiently handle ground rod sizes of 1/2", 5/8", and 3/4", making them adaptable for numerous installation scenarios. With dimensions of 2.45" in height and 0.88" in depth, the Morris 91546 connectors are compact yet robust. They are designed for use with rebar sizes #5 (5/8") to #6 (3/4") and are suitable for conductor wire ranges from 500MCM to 250MCM and 2/0STR to 1/0STR. Please note that these products come with a warning regarding cancer and reproductive harm. With the Morris 91546, you can trust in a secure and efficient grounding solution for your electrical projects.

Figure 6 Irreversible Grounding Connectors are acceptable for direct burial in earth and concrete

• Provides a tap or pigtail-type connection from ground rods to grounding counterpoise or grid
• Ground rod sizes 1/2", 5/8", and 3/4"
• Made of Pure Electrolytic Copper - matches or exceeds conductor current carrying capacity
• Suitable for use on Copperweld� or copper clad cable
• Conductor range #6 through 500 kcmil
• Acceptable for direct burial in earth and concrete
