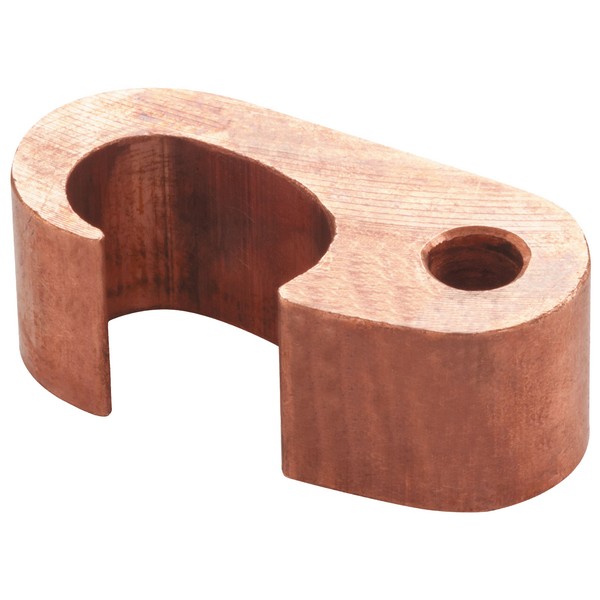

Morris 91549 Figure 6 Irreversible Grounding Connectors for Direct Burial

Morris 91549 Figure 6 Irreversible Grounding Connectors are designed for reliable performance in a variety of grounding applications, suitable for direct burial in earth and concrete. Constructed from pure electrolytic copper, these connectors meet or exceed the current carrying capacity of conductors, ensuring durable and efficient connections. The Morris 91549 provides a versatile tap or pigtail-type connection from ground rods to grounding counterpoise or grid, accommodating a conductor range from #6 to 500 kcmil. This adaptability makes it ideal for use with Copperweld® or copper-clad cables, allowing you to meet diverse project requirements with ease. Engineered for compatibility with ground rod sizes of 1/2", 5/8", and 3/4", the connector measures 2.44" in height and 0.88" in width, making it compact yet robust. It is also suitable for various rebar-to-conductor connections, ensuring flexibility in installation options. With a UPC of 601986915496, the Morris 91549 is a dependable choice for professionals seeking quality grounding solutions. Please note that this product carries a warning for cancer and reproductive harm. When it comes to grounding, trust in the reliability and performance of Morris Products.

Figure 6 Irreversible Grounding Connectors are acceptable for direct burial in earth and concrete

• Provides a tap or pigtail-type connection from ground rods to grounding counterpoise or grid
• Ground rod sizes 1/2", 5/8", and 3/4"
• Made of Pure Electrolytic Copper - matches or exceeds conductor current carrying capacity
• Suitable for use on Copperweld� or copper clad cable
• Conductor range #6 through 500 kcmil
• Acceptable for direct burial in earth and concrete
