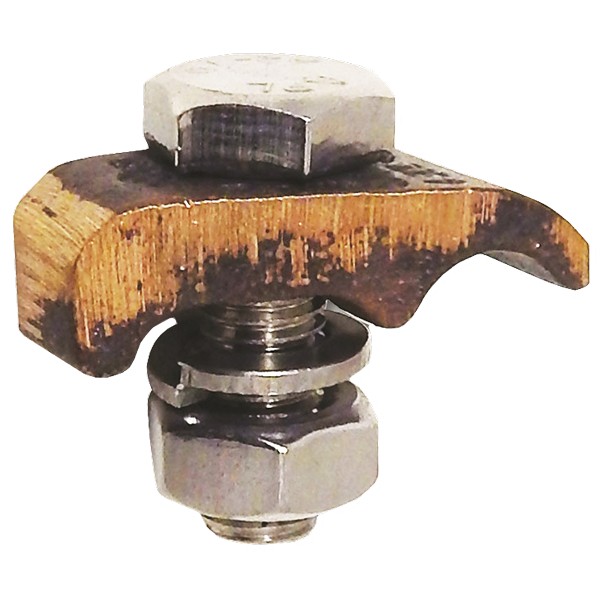

Morris 91723 I Beam Ground Clamp for Secure Grounding to I Beam

Morris 91723 I Beam Ground Clamp provides a reliable solution for grounding equipment securely to I Beam stanchions or other metal framing and cable trays. Designed to keep ground electrodes firmly clamped to beams, this ground clamp features a lay-in capability that accommodates continuous grounding loops, making it an ideal choice for various electrical applications. Constructed from high-strength, high-conductivity copper alloy, the Morris 91723 ensures excellent electrical performance and durability. It is equipped with stainless steel bolts, nuts, and lock washers, enhancing its resistance to corrosion and wear over time. This clamp is UL 467 listed, allowing for direct burial grounding and bonding applications in both soil and concrete, ensuring compliance with industry standards. With a compact size of 2 inches in height and 2-1/8 inches in length, the clamp can fit snugly in tight spaces, while its width of 1-1/2 inches allows for versatile installation options. It accommodates a wire range of 250-2/0, making it suitable for various grounding needs. The Morris 91723 is also cULus listed, further validating its safety and effectiveness. For those seeking a dependable grounding solution, this ground clamp stands out with its robust construction and practical features.

This I Beam Ground Clamp keeps Ground Electrode Clamped To Beam when Grounding to I Beam

• UL 467 Listed for Direct Burial Grounding/Bonding Applications in Soil and Concrete
• Stainless Steel Bolts, Nuts and Lock Washers
• Ground Clamp Grounds Equipment to 1/4" I Beam Stanchion or other Metal Framing or Cable Tray
• cULus Listed
• Cast of High Strength High Conductivity Copper Alloy
• Lay-In Feature for use with Continuous Grounding Loops
• Ground Electrode is Clamped To Beam

Resources

• Catalog PDF page
• Spec Sheet
