Morris 93022 A One Hole Compression Lug is designed for reliable connections with both copper and aluminum cables, making it an essential component for any electrical project. This dual-rated AL9CU compression lug simplifies installation by accommodating both conductor types, ensuring versatility in various applications. Crafted from high-conductivity seamless aluminum, the connector features a barrel coated with an oxide inhibitor to enhance performance and longevity. The uniform bright electro-tin plating not only resists corrosion but also significantly reduces contact resistance, providing maximum conductivity for your electrical systems. With a single mounting hole and a stud size of 1/4", this compression lug is easy to install and color-coded in pink for quick identification. The marked die index and crimp marks indicate proper crimp locations, ensuring a secure connection every time. The Morris 93022 A is UL486B and cULus listed, rated for 35KV when properly installed, giving you peace of mind regarding its performance and safety standards. With dimensions of 2.5" in length and an outside diameter of 0.53", this product is engineered to meet the demands of both residential and industrial applications. Choose the Morris 93022 A for your next electrical project and experience the reliability and quality that Morris Products is known for.
A One Hole Compression Lug for use with Copper or Aluminum Cables.
Al9cu Dual Rating: AL9CU Dual Rated
Barrel Length: Long
Color: Pink
Color Code: Pink
Connector Style: Lug
Connector Type: Compression
Country of Origin: India

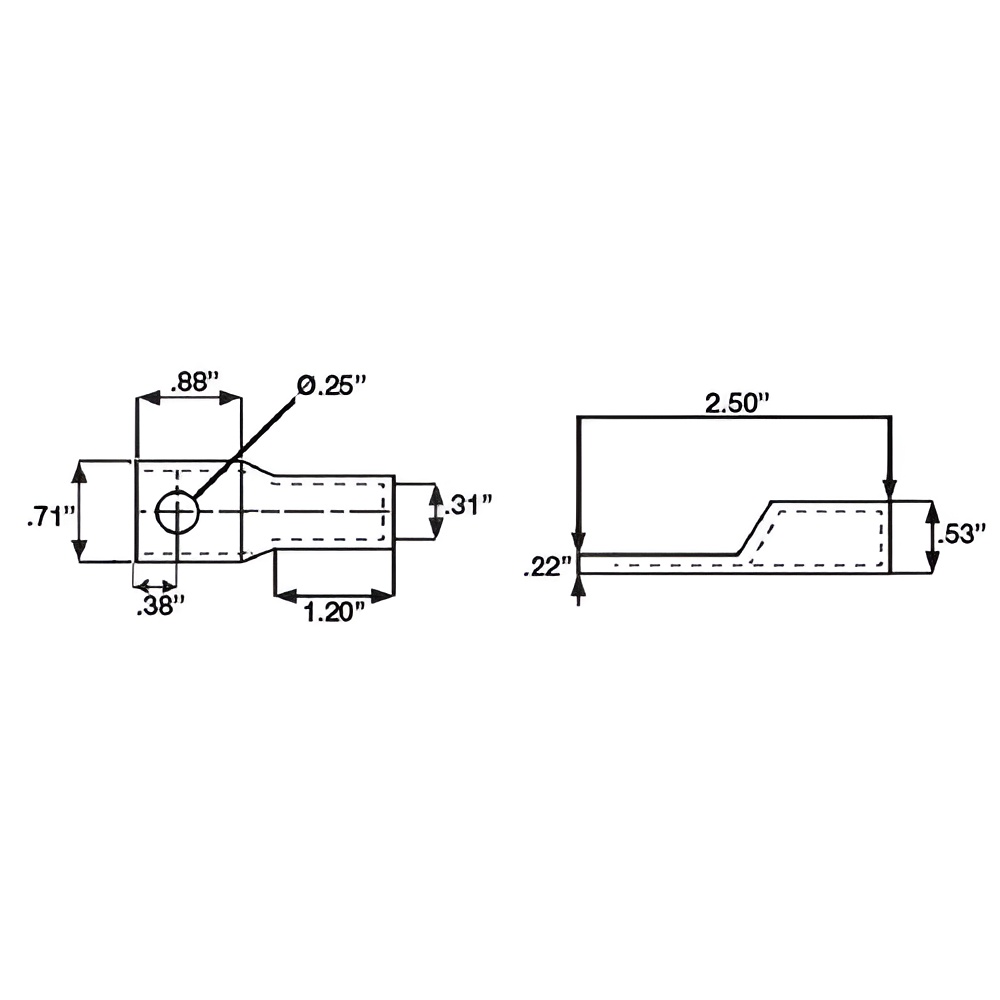

Description: Aluminum Long Barrel 1 Hole Compression Lugs 2 Awg - 1/4 Stud
Finish: Electro-Tin Plated
Hole Size: 1/4
Inside Diameter: 0.31"
Length: 2.5"
Material: Aluminum
Maximum Voltage: 35KV
Mfg Standard: UL 486B
Number of Mounting Holes: 1
Outside Diameter: 0.53"
Stud Size: 1/4"
Type: Aluminum Long Barrel 1 Hole Compression Lugs
Ul Listing: cULus
Upc: 601986930222
Warning: Cancer and Reproductive Harm
Wire Range: 2 Str.
Wire Size: 2 Str.
