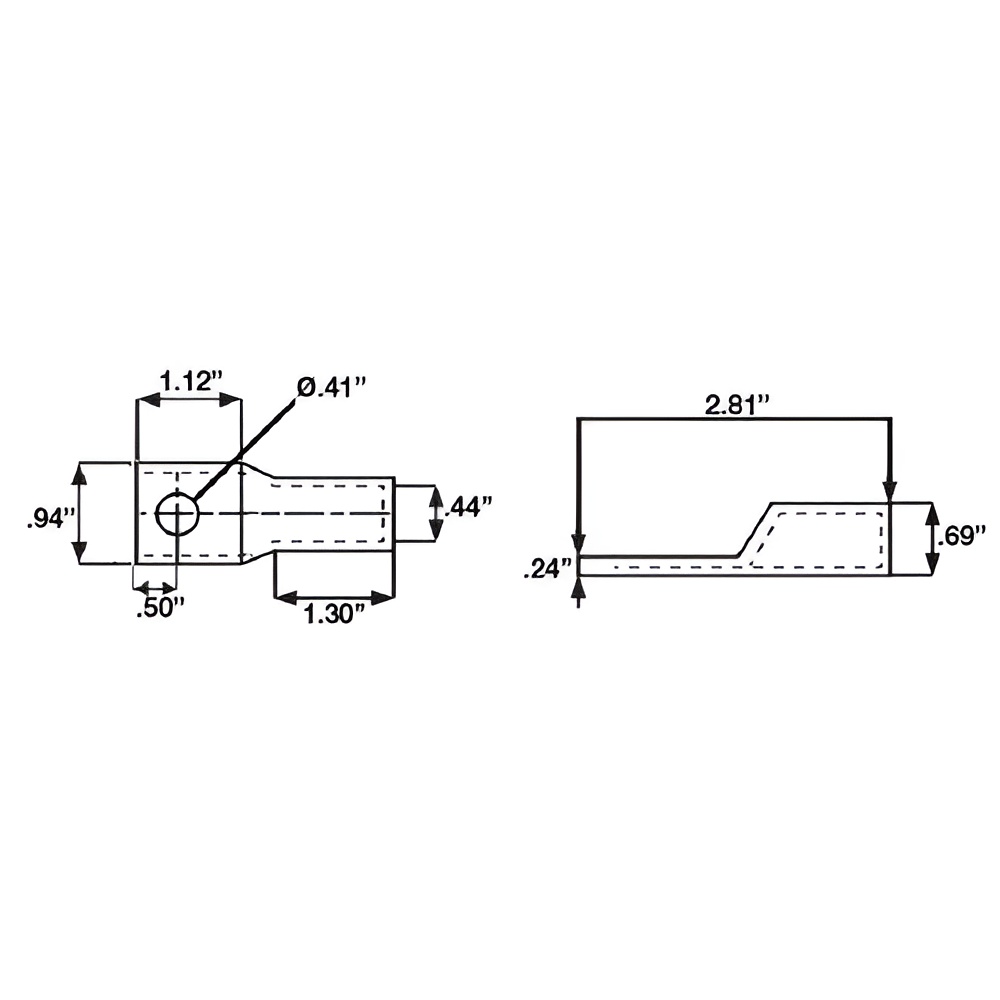

Morris 93044 A One Hole Compression Lug is designed to provide reliable connections for both copper and aluminum cables. This AL9CU dual-rated connector accommodates a wire range of up to 2/0 stranded, making it versatile for various electrical applications. Crafted from high-conductivity seamless aluminum, this compression lug features a uniform bright electro-tin plating that not only enhances conductivity but also offers excellent corrosion resistance, ensuring durability over time. The connector barrel is coated with an oxide inhibitor and capped for added protection, while the single mounting hole simplifies installation. Color-coded for easy identification, the lug is marked with a die index and crimp marks that indicate the proper crimp locations, promoting accuracy in your connections. With a stud size of 3/8" and dimensions of 2.81" in length and 0.69" in outside diameter, it fits seamlessly into standard setups. The Morris 93044 A is UL486B listed and cULus listed, ensuring compliance with safety standards for installations up to 35KV when properly installed. This high-quality compression lug is a reliable choice for professionals seeking efficient and safe electrical solutions. Note: This product comes with a warning regarding cancer and reproductive harm.
A One Hole Compression Lug for use with Copper or Aluminum Cables.
Al9cu Dual Rating: AL9CU Dual Rated
Barrel Length: Long
Color: Olive
Color Code: Olive
Connector Style: Lug
Connector Type: Compression
Country of Origin: India
Description: Aluminum Long Barrel 1 Hole Compression Lugs 2/0 Awg - 3/8 Stud
Finish: Electro-Tin Plated
Hole Size: 3/8
Inside Diameter: 0.44"
Length: 2.81"
Material: Aluminum
Maximum Voltage: 35KV
Mfg Standard: UL 486B
Number of Mounting Holes: 1
Outside Diameter: 0.69"
Stud Size: 3/8"
Type: Aluminum Long Barrel 1 Hole Compression Lugs
Ul Listing: cULus
Upc: 601986930444
Warning: Cancer and Reproductive Harm
Wire Range: 2/0 Str.
Wire Size: 2/0 Str.
