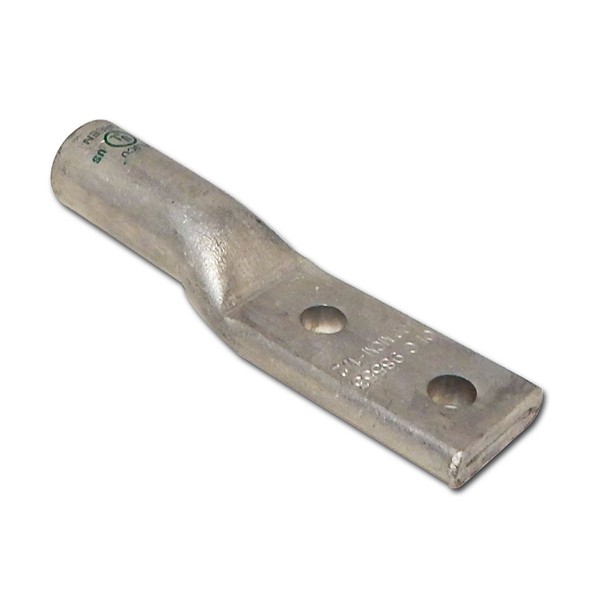

Morris 93132 Dual Rated Two Hole Compression Lug is engineered to meet the demands of both aluminum and copper cable installations. This versatile connector is perfect for professionals working in residential, commercial, or industrial settings. Featuring two mounting holes for secure attachment, the lug is designed to accommodate wire sizes up to 750 MCM, providing robust connectivity for your electrical projects. Constructed from high-conductivity seamless aluminum, the lug is coated with an oxide inhibitor to enhance performance and longevity. Its uniform bright electro-tin plating resists corrosion and minimizes contact resistance, ensuring maximum conductivity. Clear crimp marks indicate proper crimp locations, simplifying installation and enhancing reliability. Color-coded in yellow for easy identification, the lug is also marked with a die index for straightforward use. With a hole spacing of 1.00 inches and a stud size of 3/8 inches, it seamlessly integrates into your electrical systems. UL486B and cULus listed, this dual rated compression lug is suitable for applications up to 35KV when installed properly, providing peace of mind in demanding environments. Trust the Morris 93132 to deliver exceptional quality and performance for all your electrical needs.
Dual Rated Two Hole Compression Lug for Aluminum or Copper Cables.
Al9cu Dual Rating: AL9CU Dual Rated
Barrel Length: Long
Color: Yellow
Color Code: Yellow
Connector Style: Lug
Connector Type: Compression
Country of Origin: India
Description: Aluminum Long Barrel 2 Hole Compression Lugs 750 MCM - 3/8 Stud
Finish: Electro-Tin Plated
Hole Size: 3/8
Hole Spacing: 1.00"
Inside Diameter: 1.03"
Length: 7.37"
Material: Aluminum
Maximum Voltage: 35KV
Mfg Standard: UL 486B
Number of Mounting Holes: 2
Outside Diameter: 1.60"
Stud Size: 3/8"
Type: Aluminum Long Barrel 2 Hole Compression Lugs
Ul Listing: cULus
Upc: 601986931328
Warning: Cancer and Reproductive Harm
Wire Range: 750 MCM
Wire Size: 750 MCM
