Morris 93212 Aluminum Compression Splices are dual-rated connectors designed for seamless compatibility with both copper and aluminum conductors. Engineered for high performance, these splices are made from high-conductivity seamless aluminum, ensuring optimal conductivity for your electrical applications. The uniform bright electro-tin plating not only enhances corrosion resistance but also minimizes contact resistance, providing you with maximum electrical efficiency. These compression splices feature a connector barrel that is coated with an oxide inhibitor and capped for added protection. The center stop design guarantees proper cable installation, while crimp marks indicate the ideal crimp locations, simplifying the installation process. With a long barrel that accommodates multiple crimps, these splices are a versatile choice for various wiring needs. Color-coded for easy identification, the Morris 93212 splices are marked with a die index for quick reference. They are UL486B listed AL9CU and can be utilized for installations up to 35kV when installed correctly. Conveniently sized, these splices have an inside diameter of 0.25 inches, an outside diameter of 0.44 inches, and a length of 2.00 inches. Trust in Morris Products for reliable, high-quality electrical components that meet your demanding standards.
Aluminum Compression Splices are Dual Rated for use with both Copper & Aluminum Conductors.
Al9cu Dual Rating: AL9CU Dual Rated
Barrel Length: Long
Color: Green
Color Code: Green
Connector Style: Splice
Connector Type: Compression
Country of Origin: India
Description: Aluminum Long Barrel Compression Splices #4 Awg
Finish: Electro-Tin Plated

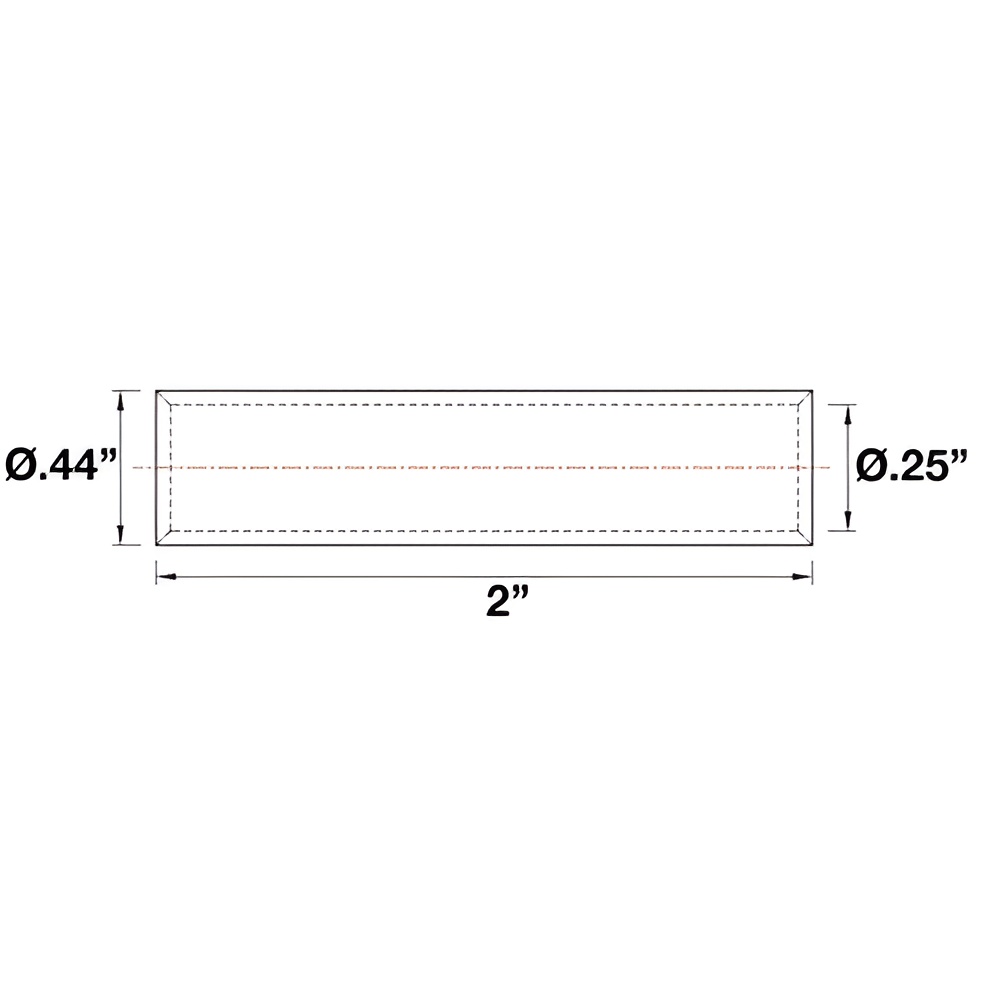

Inside Diameter: 0.25"
Length: 2.00"
Material: Aluminum
Maximum Voltage: 35KV
Mfg Standard: UL 486B
Outside Diameter: 0.44"
Type: Aluminum Long Barrel Compression Splices
Ul Listing: cULus
Upc: 601986932127
Warning: Cancer and Reproductive Harm
Wire Range: 4 Str.
Wire Size: 4 Str.
