Morris 93216 Aluminum Compression Splices are designed for versatility and high performance, making them an essential choice for both copper and aluminum conductors. These dual-rated splices are compliant with AL9CU standards, ensuring compatibility with a wide range of applications. The connector barrels are treated with an oxide inhibitor and capped to enhance durability and performance. A key feature of these compression splices is the center stop, which guarantees proper cable installation every time. Crafted from high-conductivity seamless aluminum, they are uniformly electro-tin plated to resist corrosion and minimize contact resistance, maximizing conductivity for your electrical connections. The color-coded design allows for easy identification, while the die index markings assist in maintaining accuracy during use. With crimp marks indicating proper crimp locations and a long barrel accommodating multiple crimps, the Morris 93216 splices are engineered for efficiency. They are UL486B Listed AL9CU and can handle up to 35KV when installed correctly, providing peace of mind for high-voltage applications. These splices are also cULus Listed, ensuring they meet rigorous safety standards. With dimensions of 2.38" in length and 0.35" inside diameter, you can trust Morris Products to deliver quality and reliability in every splice.
Aluminum Compression Splices are Dual Rated for use with both Copper & Aluminum Conductors.
Al9cu Dual Rating: AL9CU Dual Rated
Barrel Length: Long
Color: Gold
Color Code: Gold
Connector Style: Splice
Connector Type: Compression
Country of Origin: India
Description: Aluminum Long Barrel Compression Splices #1 Awg
Finish: Electro-Tin Plated

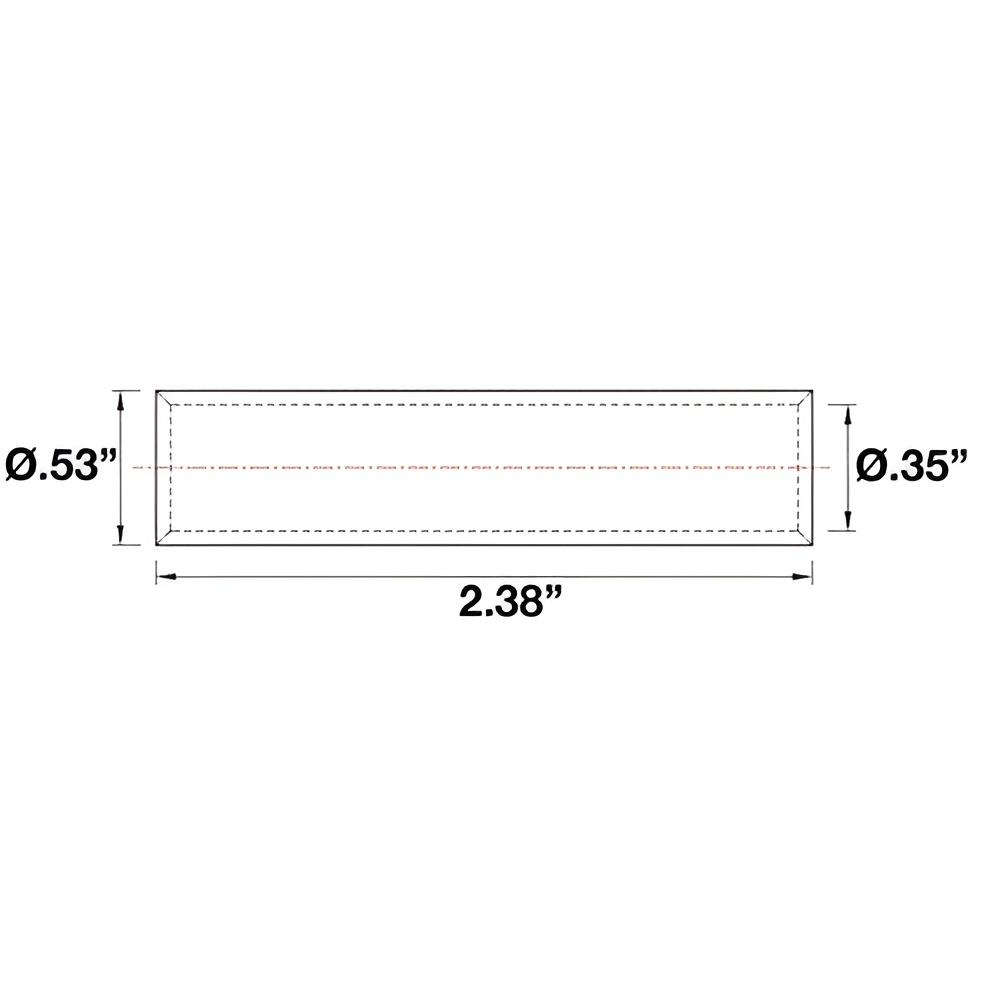

Inside Diameter: 0.35"
Length: 2.38"
Material: Aluminum
Maximum Voltage: 35KV
Mfg Standard: UL 486B
Outside Diameter: 0.53"
Type: Aluminum Long Barrel Compression Splices
Ul Listing: cULus
Upc: 601986932165
Warning: Cancer and Reproductive Harm
Wire Range: 1 Str.
Wire Size: 1 Str.
