Morris 93220 Aluminum Compression Splices are designed for versatility, as they are Dual Rated for use with both Copper and Aluminum conductors. This feature allows for seamless integration in various electrical applications, making them an essential addition to your toolkit. The splices are crafted from high-conductivity seamless aluminum, ensuring optimal performance and reliability. Each connector barrel is coated with an oxide inhibitor and capped, providing enhanced protection against corrosion and reducing contact resistance. The uniform bright electro-tin plating not only resists corrosion but also maximizes conductivity, ensuring that your electrical connections remain efficient over time. The color-coded design facilitates easy identification, while the marked die index and crimp marks indicate proper crimp locations for straightforward installation. With a long barrel accommodating multiple crimps, these splices are engineered for practicality and durability. The center stop feature ensures proper cable installation, while the splices are UL486B Listed AL9CU and rated for 35KV when properly installed, providing peace of mind for demanding applications. Measuring 2.63 inches in length with an outside diameter of 0.69 inches and an inside diameter of 0.44 inches, the Morris 93220 splices are ready to meet your electrical connection needs with confidence.
Aluminum Compression Splices are Dual Rated for use with both Copper & Aluminum Conductors.
Al9cu Dual Rating: AL9CU Dual Rated
Barrel Length: Long
Color: Olive
Color Code: Olive
Connector Style: Splice
Connector Type: Compression
Country of Origin: India
Description: Aluminum Long Barrel Compression Splices 2/0 Awg
Finish: Electro-Tin Plated

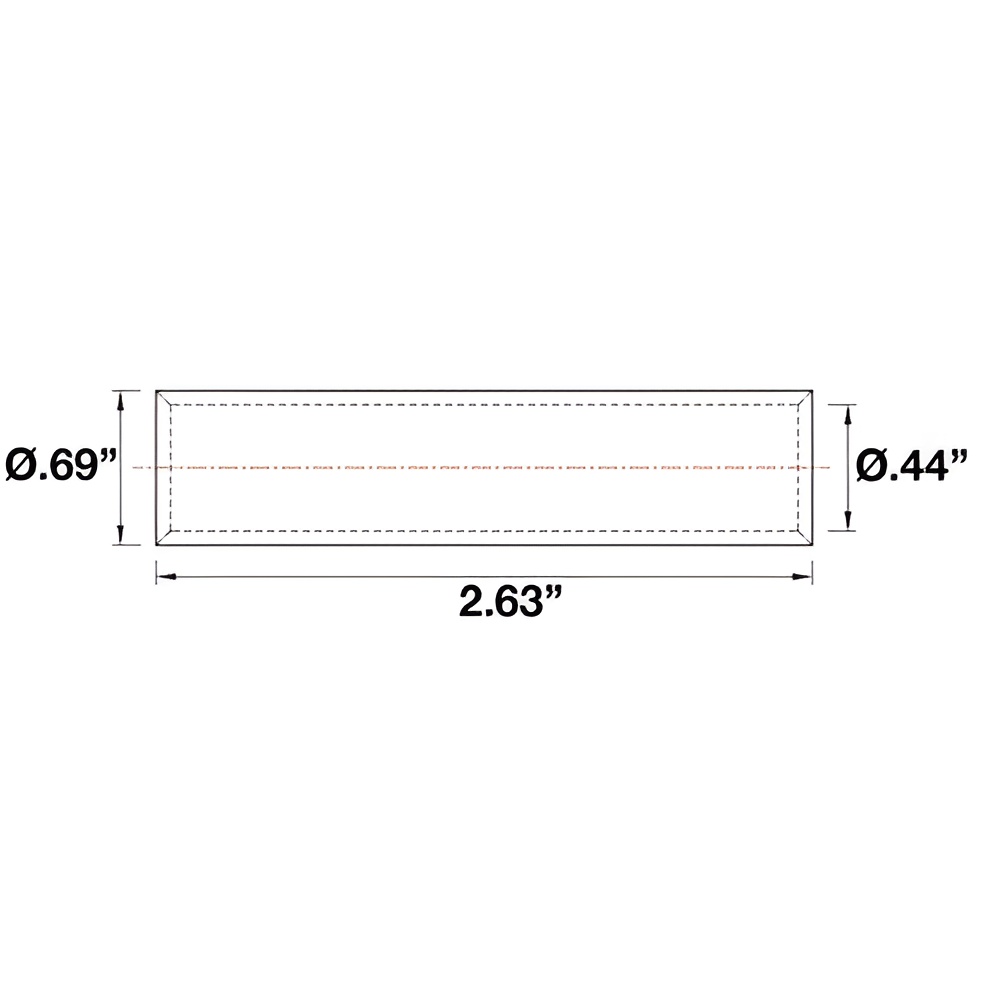

Inside Diameter: 0.44"
Length: 2.63"
Material: Aluminum
Maximum Voltage: 35KV
Mfg Standard: UL 486B
Outside Diameter: 0.69"
Type: Aluminum Long Barrel Compression Splices
Ul Listing: cULus
Upc: 601986932202
Warning: Cancer and Reproductive Harm
Wire Range: 2/0 Str.
Wire Size: 2/0 Str.
