Morris 93224 Dual Rated Aluminum Compression Splices for Copper Aluminum Conductors

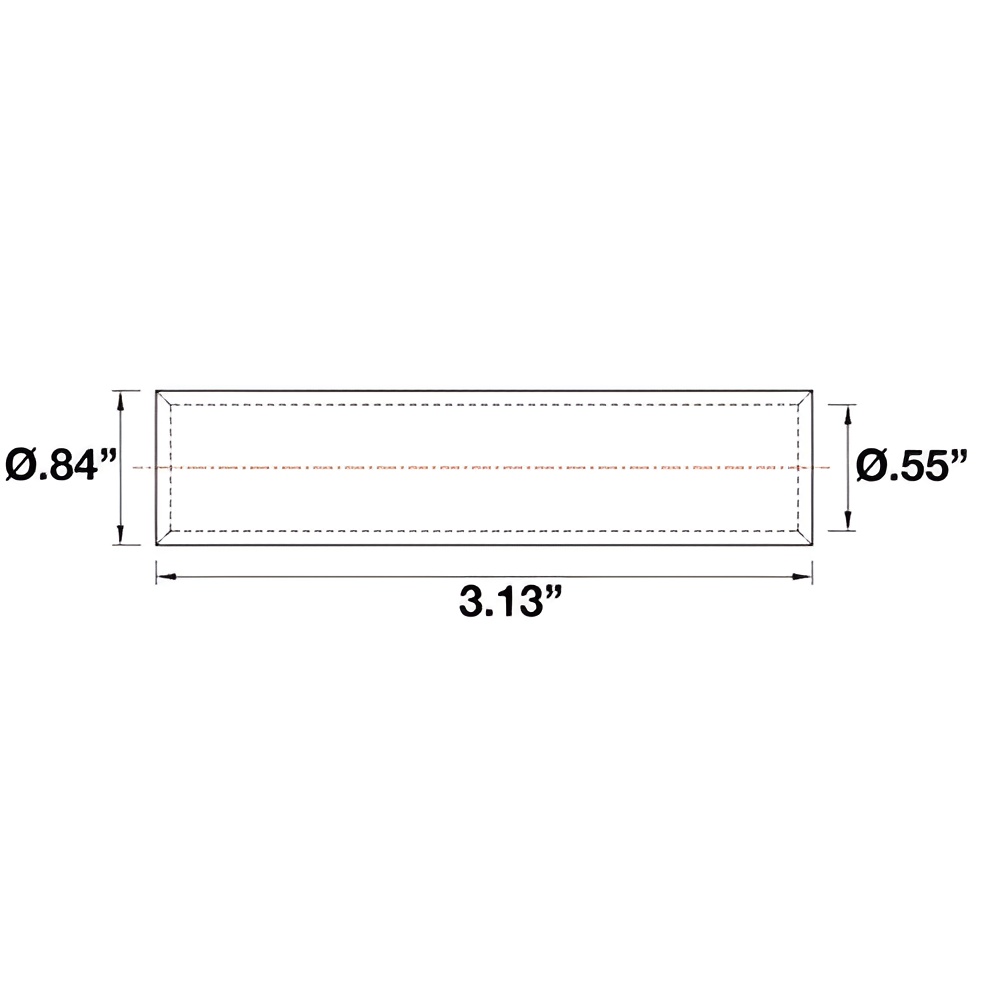

Morris 93224 Aluminum Compression Splices are expertly designed to accommodate both copper and aluminum conductors, making them a versatile choice for various electrical applications. These AL9CU Dual Rated splices ensure compatibility with multiple wire types, streamlining installation processes for professionals and knowledgeable homeowners alike. Constructed from high-conductivity seamless aluminum, these splices feature connector barrels coated with an oxide inhibitor, effectively preventing corrosion and enhancing conductivity. The uniform bright electro-tin plating further reduces contact resistance, ensuring a reliable connection every time. Each splice is color-coded for easy identification and marked with a die index, simplifying the installation process. The design includes crimp marks that indicate proper crimp locations, while the long barrel accommodates multiple crimps for enhanced durability. With a center stop feature, users can achieve precise cable installation, ensuring optimal performance. These splices are UL486B listed and rated for 35KV when properly installed, giving you confidence in their reliability. Measuring 3.13 inches in length with an outside diameter of 0.84 inches, and an inside diameter of 0.55 inches, the Morris 93224 Aluminum Compression Splices are an essential component for any electrical project. Trust in Morris Products for quality connections that stand the test of time.

Aluminum Compression Splices are Dual Rated for use with both Copper & Aluminum Conductors.

• Color Coded for Easy Identification
• Aluminum Compression Splices are cULus Listed
• Aluminum Compression Splices are AL9CU Dual Rated & accept both Aluminum and Copper conductors
• Connector Barrels are coated with Oxide Inhibitor & capped
• Made of High-Conductivity Seamless Aluminum
• Long Barrel Accomodates Multiple Crimps
• UL486B Listed AL9CU
• Crimp Marks indicate Proper Crimp Locations
• Uniform Bright Electro-Tin Plating resists corrosion, reduces contact resistance and gives you maximum conductivity
• Marked with Die Index
• Center Stop assures Proper Cable Installation
• Dimension Measurements = Inches
• Listed for 35KV when properly installed
