Morris 93228 Aluminum Compression Splices are expertly designed to meet the needs of both copper and aluminum conductors, making them a versatile choice for various electrical applications. These dual-rated splices, identified as AL9CU, ensure compatibility and optimal performance whether you’re working with aluminum or copper wiring. Constructed from high-conductivity seamless aluminum, each connector barrel is treated with an oxide inhibitor to enhance durability. The uniform bright electro-tin plating not only resists corrosion but also minimizes contact resistance, promoting maximum conductivity for your projects. The design features a center stop that guarantees proper cable installation, while crimp marks indicate the correct crimp locations. Color-coded for easy identification, the splices measure 3.25 inches in length and have an outside diameter of 1.01 inches, accommodating wire ranges up to 300 MCM. Each splice is UL486B listed and can safely handle voltages up to 35KV when installed correctly, ensuring peace of mind during use. Additionally, the long barrel allows for multiple crimps, further enhancing flexibility in installation. With their cULus listing and reliable manufacturing, Morris 93228 Aluminum Compression Splices are an essential component for any electrical professional.
Aluminum Compression Splices are Dual Rated for use with both Copper & Aluminum Conductors.
Al9cu Dual Rating: AL9CU Dual Rated
Barrel Length: Long
Color: Blue
Color Code: Blue
Connector Style: Splice
Connector Type: Compression
Country of Origin: India
Description: Aluminum Long Barrel Compression Splices 300 MCM
Finish: Electro-Tin Plated

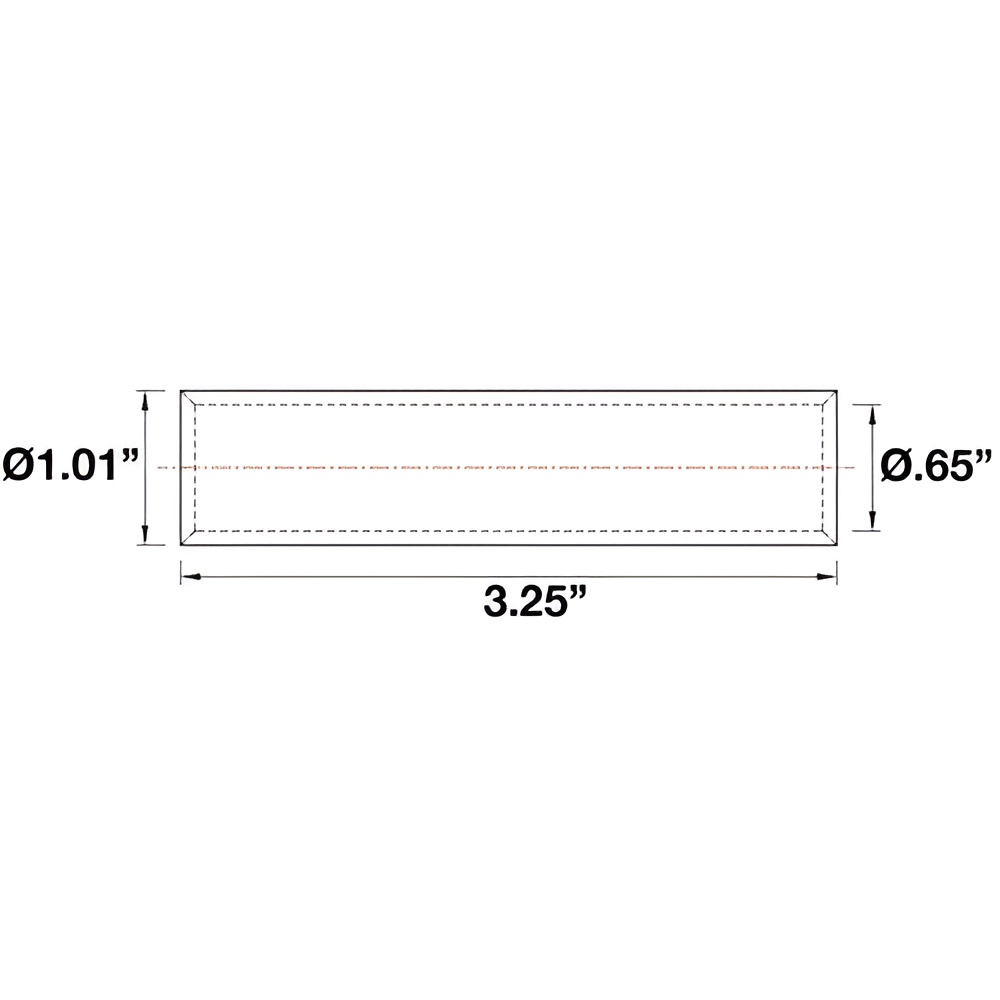

Inside Diameter: 0.65"
Length: 3.25"
Material: Aluminum
Maximum Voltage: 35KV
Mfg Standard: UL 486B
Outside Diameter: 1.01"
Type: Aluminum Long Barrel Compression Splices
Ul Listing: cULus
Upc: 601986932288
Warning: Cancer and Reproductive Harm
Wire Range: 300 MCM
Wire Size: 300 MCM
