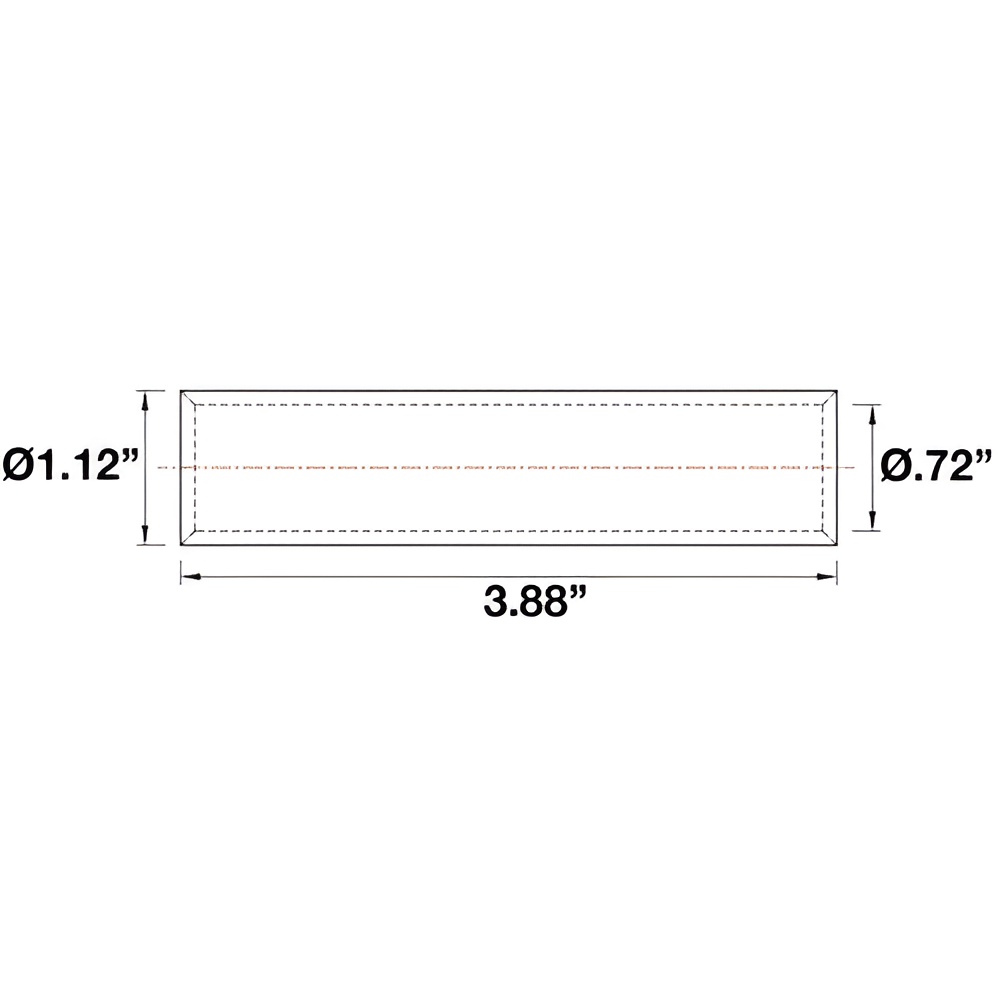

Morris 93230 Aluminum Compression Splices are dual-rated connectors designed for seamless compatibility with both copper and aluminum conductors. Constructed from high-conductivity seamless aluminum, these splices feature a uniform bright electro-tin plating that enhances conductivity while resisting corrosion, making them an ideal choice for various electrical applications. Each splice is equipped with a coated oxide inhibitor and capped connector barrels for added protection. The center stop ensures proper cable installation, while crimp marks highlight the correct crimp locations, promoting secure connections. The long barrel design accommodates multiple crimps, providing versatility in installation. Color-coded for easy identification, the Morris 93230 splices are also marked with a die index, simplifying your workflow. With a wire range of up to 350 MCM and UL486B listing for AL9CU, these splices are rated for up to 35KV when properly installed, ensuring reliability in high-demand environments. Measuring 3.88 inches in length with an inside diameter of 0.72 inches and an outside diameter of 1.12 inches, these splices are both practical and efficient. Trust Morris Products for quality electrical components that meet the rigorous standards of the industry.
Aluminum Compression Splices are Dual Rated for use with both Copper & Aluminum Conductors.
Al9cu Dual Rating: AL9CU Dual Rated
Barrel Length: Long
Color: Brown
Color Code: Brown
Connector Style: Splice
Connector Type: Compression
Country of Origin: India
Description: Aluminum Long Barrel Compression Splices 350 MCM
Finish: Electro-Tin Plated
Inside Diameter: 0.72"
Length: 3.88"
Material: Aluminum
Maximum Voltage: 35KV
Mfg Standard: UL 486B
Outside Diameter: 1.12"
Type: Aluminum Long Barrel Compression Splices
Ul Listing: cULus
Upc: 601986932301
Warning: Cancer and Reproductive Harm
Wire Range: 350 MCM
Wire Size: 350 MCM
