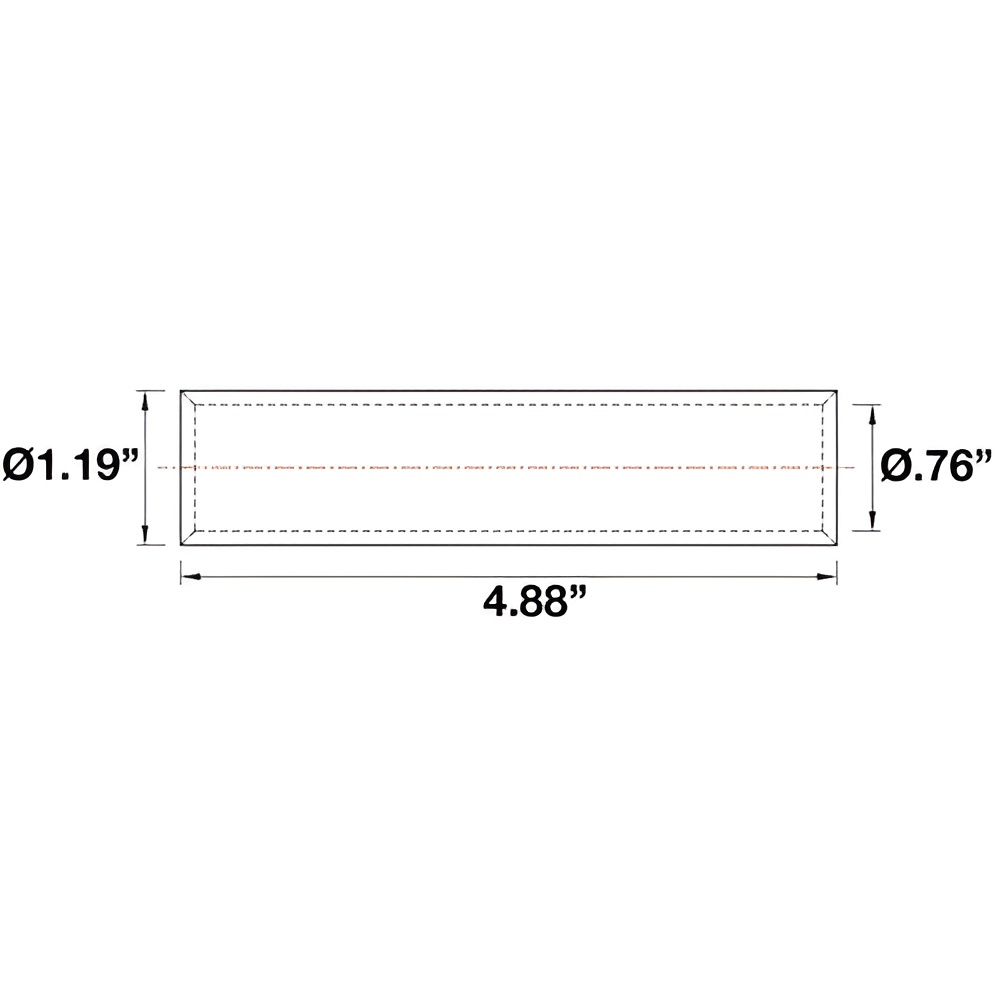

Morris 93232 Aluminum Compression Splices are dual-rated connectors designed to offer optimal performance with both copper and aluminum conductors. These splices are specifically engineered with high-conductivity seamless aluminum, ensuring maximum conductivity and reliability in various applications. The aluminum compression splices feature a connector barrel coated with an oxide inhibitor and capped for enhanced protection against corrosion. Their uniform bright electro-tin plating not only resists corrosion but also minimizes contact resistance, contributing to superior conductivity. For ease of installation, the center stop guarantees proper cable placement, while crimp marks indicate the correct crimp locations, facilitating accurate and secure connections. Measuring 4.88 inches in length with an outside diameter of 1.19 inches and an inside diameter of 0.76 inches, these splices accommodate a wire range of up to 400 MCM. They are color-coded green for easy identification and marked with die indices for added convenience. UL486B listed and cULus certified, the Morris 93232 splices are rated for up to 35KV when installed correctly, making them a reliable choice for residential, commercial, and industrial applications. Choose Morris 93232 for a quality connection you can trust.
Aluminum Compression Splices are Dual Rated for use with both Copper & Aluminum Conductors.
Al9cu Dual Rating: AL9CU Dual Rated
Barrel Length: Long
Color: Green
Color Code: Green
Connector Style: Splice
Connector Type: Compression
Country of Origin: India
Description: Aluminum Long Barrel Compression Splices 400 MCM
Finish: Electro-Tin Plated
Inside Diameter: 0.76"
Length: 4.88"
Material: Aluminum
Maximum Voltage: 35KV
Mfg Standard: UL 486B
Outside Diameter: 1.19"
Type: Aluminum Long Barrel Compression Splices
Ul Listing: cULus
Upc: 601986932325
Warning: Cancer and Reproductive Harm
Wire Range: 400 MCM
Wire Size: 400 MCM
