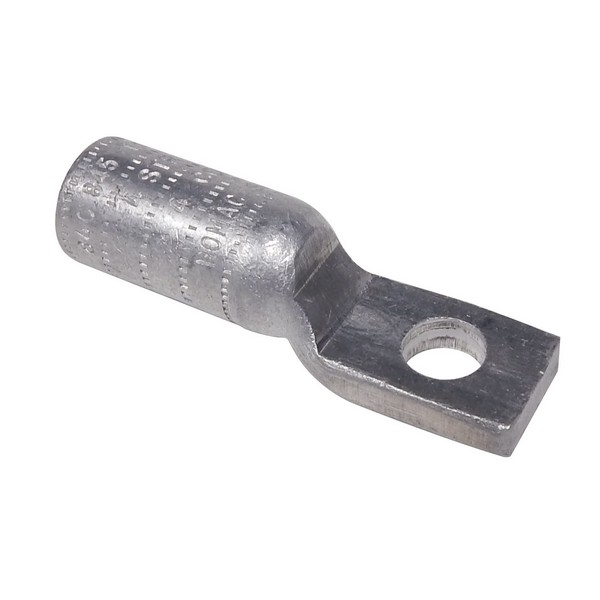

Morris 93912 Meter Pan Socket Lug for General Applications

Morris 93912 Meter Pan Socket Lug is designed for versatile use in meter pan and general applications. This high-performance connector is engineered to accommodate both aluminum and copper conductors, making it an essential component for various electrical projects. With the innovative 840 common die feature, one die can efficiently install all sizes, streamlining your installation process. Constructed from high conductivity aluminum, the Morris 93912 ensures optimal performance and reliability. Each connector bore is coated with an oxide inhibiting compound, providing enhanced corrosion resistance and longevity. The tin-plated finish further contributes to its durability in demanding environments. Marked clearly with conductor sizes and die references, this lug meets or exceeds Class A requirements of ANSI C119.4, ensuring compliance with industry standards. With a barrel length of 1.375 inches and capable of handling solid and compact ranges of 3/0 and 2/0 respectively, it offers flexibility for a variety of applications. The 3/8" stud size fits standard installations seamlessly. Ideal for professionals and knowledgeable homeowners alike, the Morris 93912 Meter Pan Socket Lug combines quality, efficiency, and ease of use, making it a reliable choice for your electrical needs.

Meter Pan Socket Lug for general applications.

• Tin Plated
• 840 common dies - one die installs all sizes
• Accepts both aluminum and copper conductors
• Meet or exceed Class A requirements of ANSI C119.4
• Connector bores are coated with oxide inhibiting compound
• Meter pan socket lugs are made of high conductivity aluminum
• Marked with conductor sizes and die references

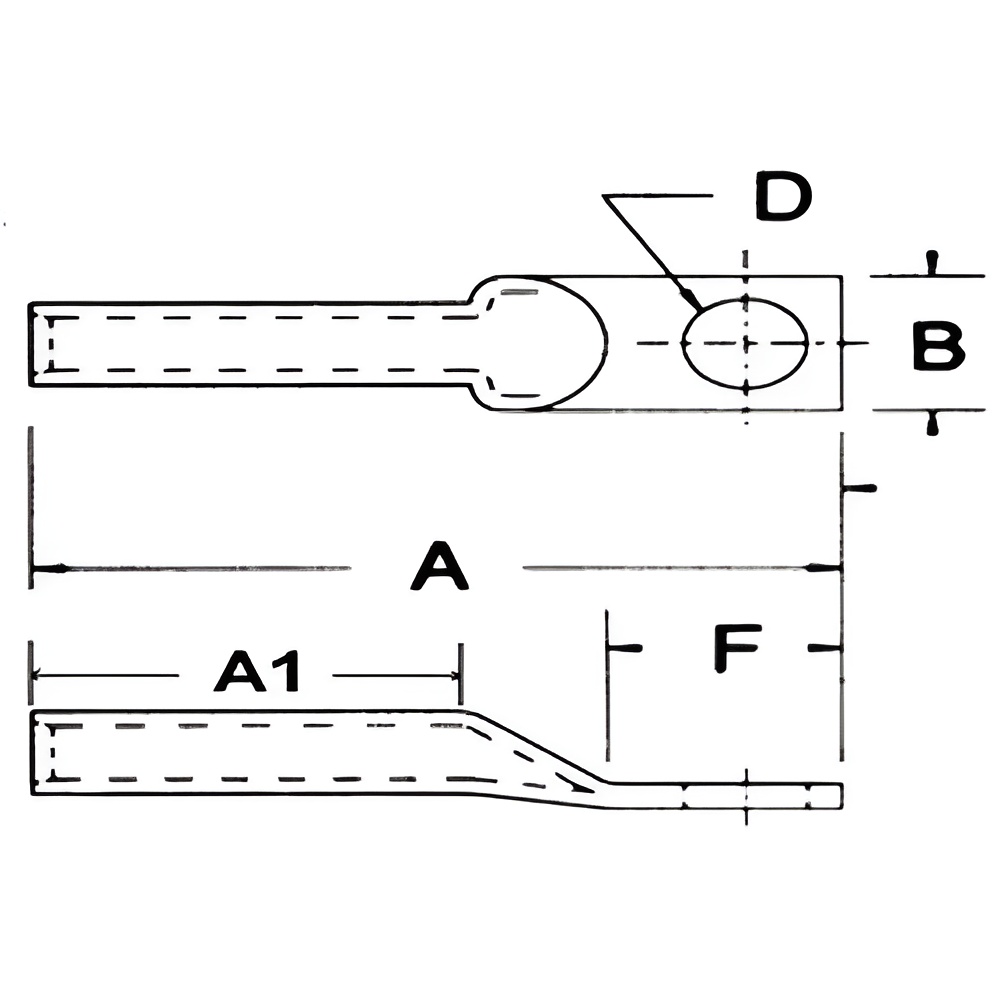

• Dimension Measurements = Inches
• For meter pan and general application
