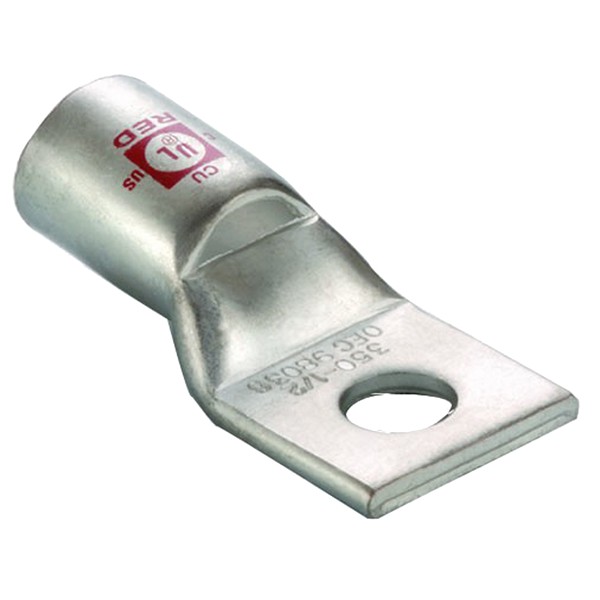

Morris 94034 One Hole Copper Compression Lugs deliver fast and reliable electrical cable terminations essential for any professional or DIY project. Crafted from high-conductivity seamless electrolytic copper, these lugs ensure optimal performance and durability. The uniform bright electro-tin plating not only resists corrosion but also reduces contact resistance, maximizing conductivity for your electrical connections. Designed with a single mounting hole, the Morris 94034 lugs feature crimp marks that indicate the proper crimp locations, ensuring accurate installations every time. Each lug is marked with die index and color codes, facilitating easy identification and usage. A peephole is included to verify proper strand insertion, providing added peace of mind during installation. These compression lugs are UL 486A listed and can handle up to 35KV when installed correctly, making them suitable for a wide range of applications. With dimensions of 1.93 inches in length and an outside diameter of .422 inches, they accommodate a wire range of 2 strands. The inside diameter measures .315 inches, and they are compatible with a 1/4-inch stud size. Choose Morris 94034 One Hole Copper Compression Lugs for dependable and efficient electrical terminations, perfect for both commercial and residential settings.
One Hole Copper Compression Lugs for fast reliable electrical cable terminations.
Barrel Length: Short
Color: Brown
Color Code: Brown
Connector Style: Lug
Connector Type: Compression
Country of Origin: India
Description: Copper Short Barrel 1 Hole Compression Lugs #2 Awg 1/4 Stud
Finish: Electro-Tin Plated
Hole Size: 1/4
Inside Diameter: .315"
Length: 1.93"
Material: High Conductivity Copper
Maximum Voltage: 35KV
Mfg Standard: Ul 486A
Number of Mounting Holes: 1
Outside Diameter: .422"
Stud Size: 1/4"
Type: Copper Short Barrel 1 Hole Compression Lugs
Ul Listing: cULus
Upc: 601986940344
Warning: Cancer and Reproductive Harm
Wire Range: 2 Str.
Wire Size: 2 Str.
