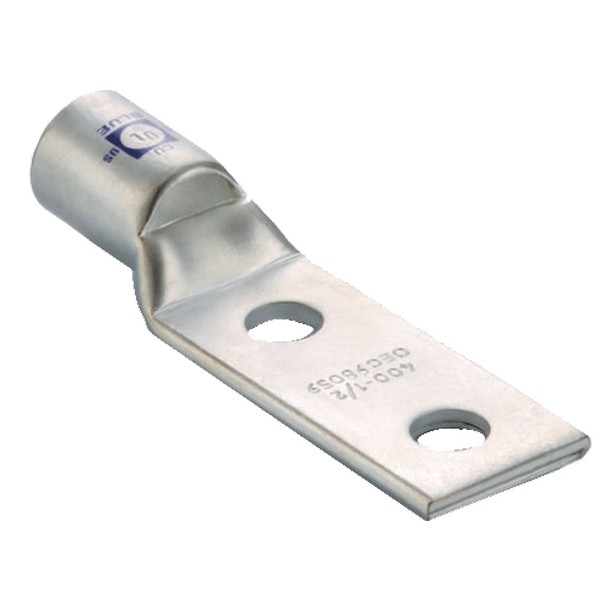

Morris 94130 Two Hole Copper Compression Lugs are your go-to solution for fast and reliable electrical cable terminations. Crafted from high-conductivity seamless electrolytic copper, these compression lugs ensure optimal conductivity while maintaining durability. With dual mounting holes, they provide versatile installation options, making them suitable for various applications. The uniform bright electro-tin plating on these lugs significantly resists corrosion, effectively reducing contact resistance to maximize performance. Each lug features crimp marks that indicate the proper crimp locations, simplifying installation and ensuring a secure fit. Additionally, the lugs are marked with die index and color codes for easy identification-ideal for professionals who prioritize efficiency. A peephole is included for verification of proper strand insertion, ensuring that your connections are reliable and effective. These lugs are UL 486A listed and rated for up to 35KV when properly installed, giving you peace of mind in high-voltage applications. With a hole spacing of 1 inch and a stud size of 3/8 inch, the Morris 94130 lugs are perfectly designed for a wire range of 4 strands. Choose these compression lugs for superior performance and ease of use on your next electrical project.
Two Hole Copper Compression Lugs for fast reliable electrical cable terminations.
Barrel Length: Short
Color: Gray
Color Code: Gray
Connector Style: Lug
Connector Type: Compression
Country of Origin: India
Description: Copper Short Barrel 2 Hole Compression Lugs #4 Awg 3/8 Stud 1" Spacing
Finish: Electro-Tin Plated
Hole Size: 3/8
Hole Spacing: 1"
Inside Diameter: .252"
Length: 2.68"
Material: High Conductivity Copper
Maximum Voltage: 35KV
Mfg Standard: Ul 486A
Number of Mounting Holes: 2
Outside Diameter: .342"
Stud Size: 3/8"
Type: Copper Short Barrel 2 Hole Compression Lugs
Ul Listing: cULus
Upc: 601986941303
Warning: Cancer and Reproductive Harm
Wire Range: 4 Str.
Wire Size: 4 Str.
