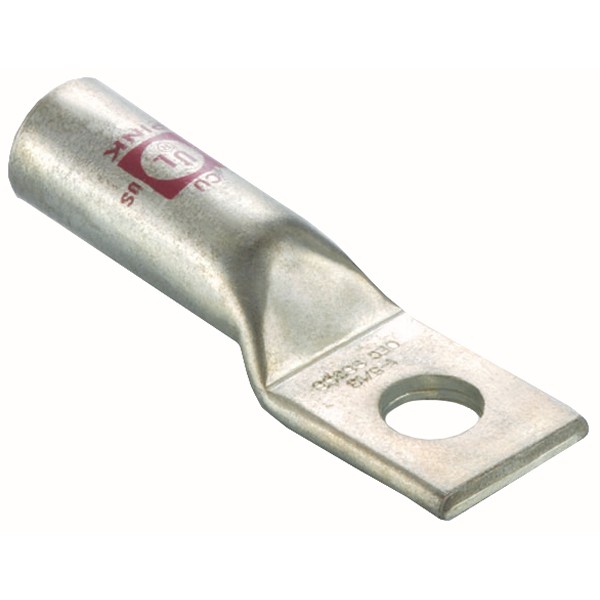

Morris 94274 One Hole Copper Compression Lugs provide fast and reliable electrical cable terminations essential for any professional project. Crafted from high-conductivity seamless electrolytic copper, these lugs ensure optimal performance and longevity. The uniform bright electro-tin plating not only resists corrosion but also significantly reduces contact resistance, maximizing conductivity for all your electrical applications. Designed with practicality in mind, the one-hole mounting feature simplifies installation, while crimp marks indicate the proper crimp locations, making it easier to achieve secure connections. Each compression lug is marked with die index and color codes for quick identification, ensuring efficiency on the job site. The long barrel design accommodates multiple crimps, allowing for versatility in various wiring setups. Rated for 35KV when properly installed, these lugs are UL 486A and cULus listed, providing peace of mind regarding safety and compliance. With dimensions of 4.02 inches in length and an outside diameter of .949 inches, along with a wire range of 400 MCM, the Morris 94274 lugs are engineered to meet the rigorous demands of both residential and commercial applications. Trust in Morris Products to deliver quality components that enhance your electrical installations.
One Hole Copper Compression Lugs for fast reliable electrical cable terminations.
Barrel Length: Long
Color: Blue
Color Code: Blue
Connector Style: Lug
Connector Type: Compression
Country of Origin: India
Description: Copper Long Barrel 1 Hole Compression Lugs 400 MCM - 5/8 Stud
Finish: Electro-Tin Plated
Hole Size: 5/8
Inside Diameter: .764"
Length: 4.02"
Material: High Conductivity Copper
Maximum Voltage: 35KV
Mfg Standard: Ul 486A
Number of Mounting Holes: 1
Outside Diameter: .949"
Stud Size: 5/8"
Type: Copper Long Barrel 1 Hole Compression Lugs
Ul Listing: cULus
Upc: 601986942744
Warning: Cancer and Reproductive Harm
Wire Range: 400 MCM
Wire Size: 400 MCM
