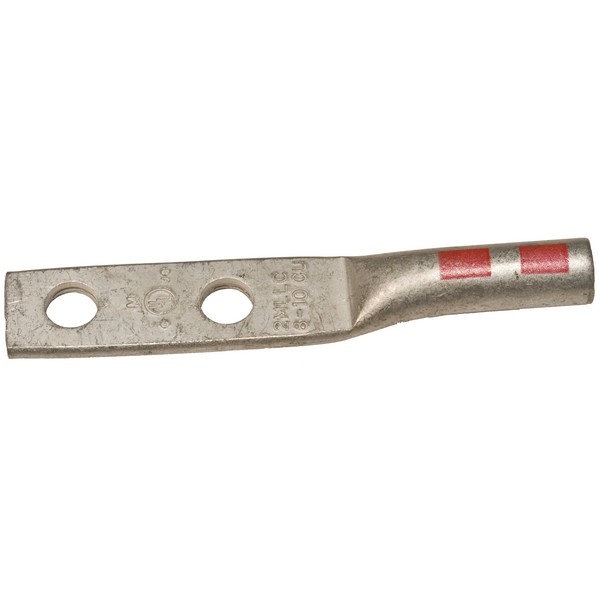

Morris 94359 Copper Compression Lugs for Reliable Electrical Cable Terminations

Morris 94359 Two Hole Copper Compression Lugs deliver fast and reliable electrical cable terminations, making them ideal for both professional and DIY applications. Constructed from high-conductivity seamless electrolytic copper, these lugs ensure maximum conductivity and durability. The uniform bright electro-tin plating provides excellent corrosion resistance, effectively reducing contact resistance to enhance performance. Designed with dual mounting holes, the Morris 94359 lugs feature a long barrel that accommodates multiple crimps, allowing for secure connections in various installations. Each lug is marked with crimp marks indicating proper crimp locations, ensuring a precise and efficient crimping process. For easy identification, compression lugs are labeled with die index and color codes. These lugs are UL 486A listed and can handle up to 35KV when installed correctly, making them suitable for high-voltage applications. The specifications include a barrel length of 3.98 inches, hole spacing of 1 inch, and a stud size of 5/16 inches, supporting wire ranges up to 3/0 stranded. With a reliable performance backed by cULus listing, Morris 94359 Two Hole Copper Compression Lugs are an essential component for any electrical project.

Two Hole Copper Compression Lugs for fast reliable electrical cable terminations.

• UL 486A Listed
• Long Barrel Accomodates Multiple Crimps
• Compression Lugs are Marked with Die Index and Color Codes for easy identification
• Crimp Marks indicate Proper Crimp Locations
• cULus Listed
• Uniform Bright Electro-Tin Plating resists corrosion, reduces contact resistance and maximizes conductivity

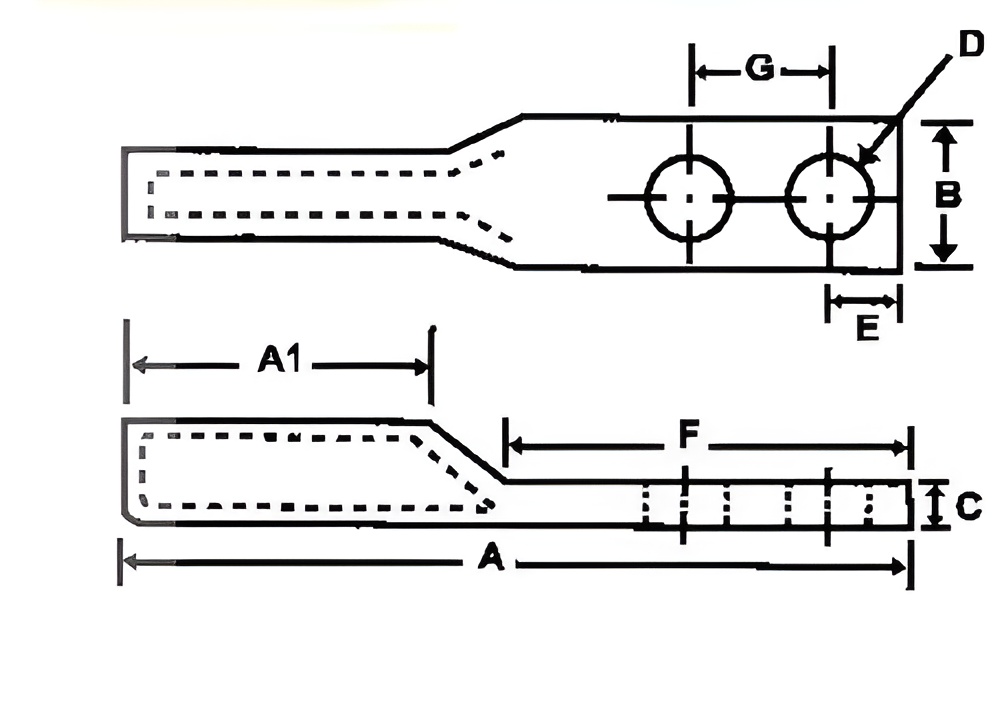

• Dimension Measurements = Inches
• Dual Mounting Holes
• Listed for 35KV when properly installed
• Our Two Hole Copper Compression Lugs are made of High-Conductivity Seamless Electrolytic Copper

Resources

• Catalog PDF page
• Spec Data Sheets
• Spec Sheet
