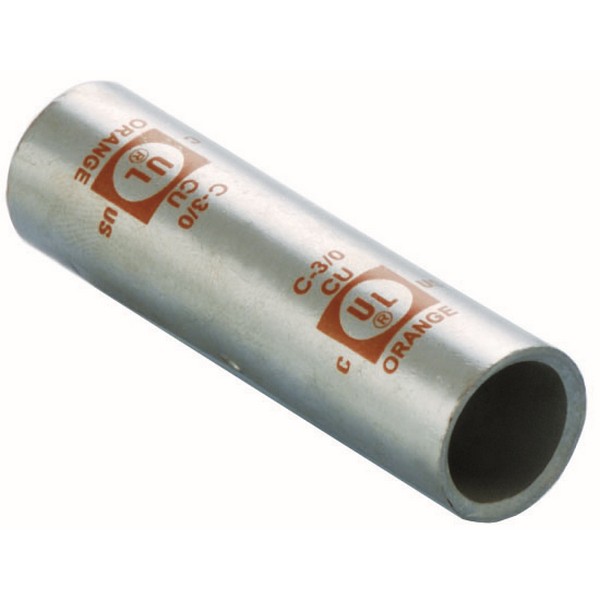

Morris 94426 Copper Compression Splice for Easy Electrical Applications

Morris 94426 Easy-to-use Copper Compression Splice is designed for a variety of electrical applications, ensuring reliable and efficient connections. Constructed from high-conductivity copper tubing, this splice facilitates maximum conductivity while the uniform bright electro-tin plating not only resists corrosion but also minimizes contact resistance. The innovative center stop feature guarantees proper cable installation, making the process straightforward and efficient. Crimp marks on the splice indicate the correct crimp locations, promoting accuracy during installation. For easy identification, this copper compression splice is clearly marked with die index and color codes, with a distinctive purple color code for quick reference. Engineered to meet industry standards, the Morris 94426 is UL 486A Listed and cULus Listed, ensuring safety and compliance. When properly installed, it is rated for up to 35KV, providing peace of mind for high-voltage applications. With dimensions of 2.13 inches in length, an inside diameter of .547 inches, and an outside diameter of .688 inches, this splice suits a wire range of 4/0 Str. Ideal for professional electricians and knowledgeable homeowners alike, the Morris 94426 Copper Compression Splice delivers both performance and reliability in every connection.

Easy-to-use Copper Compression Splice for electrical applications.

• UL 486A Listed
• Crimp marks indicate proper crimp locations
• cULus Listed
• Copper compression splice is marked with die index and color codes for easy identification
• Copper compression splice is made of high-conductivity copper tubing
• Dimension Measurements = Inches
• Center stop assures proper cable installation
• Uniform bright electro-tin plating resists corrosion, reduces contact resistance and gives you maximum conductivity
• Listed for 35KV when properly installed

Resources

• Catalog PDF page
• Spec Data Sheets
• Spec Sheet
