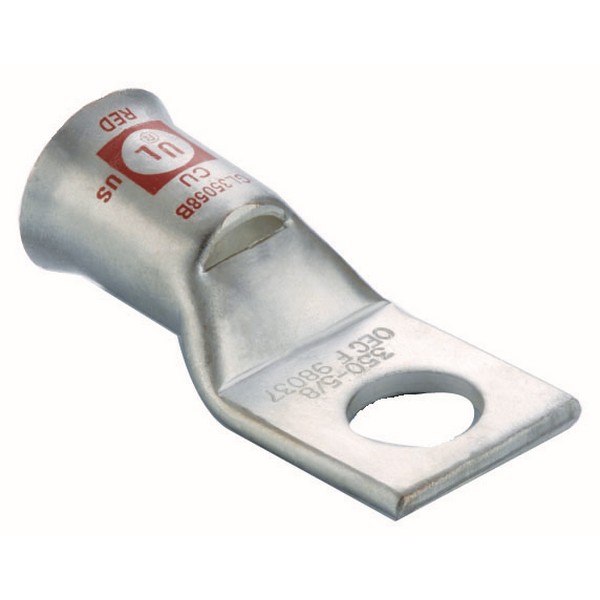

Morris 94614 One Hole Copper Compression Lugs provide fast, reliable electrical cable terminations designed for both efficiency and performance. Featuring a flared belled entry, these lugs facilitate easy insertion of fine strand flexible cables, including Class G, Class H, Class I, Class K (Battery), Class M (Welding), and DLO cable constructions. With a single mounting hole, installation is straightforward, ensuring a secure connection every time. Constructed from high-conductivity seamless electrolytic copper, the Morris 94614 lugs are built to last. The uniform bright electro-tin plating resists corrosion, reduces contact resistance, and maximizes conductivity, making them an ideal choice for demanding applications. Each lug is marked with die index and color codes for easy identification, while crimp marks indicate the proper crimp locations to ensure dependable performance. Additionally, a peephole is included for verification of proper strand insertion, offering peace of mind during installation. With a stud size of 5/16" and a wire range of 2, these lugs are UL 486A and cULus listed, rated for 35KV when properly installed. The Morris 94614 lugs are a reliable solution for anyone needing high-quality electrical connections in residential, commercial, or industrial settings.
One Hole Copper Compression Lugs for fast reliable electrical cable terminations.
Barrell Lengeth: Short
Class H: 4
Class M: 4
Color: Brown
Color Code: Brown
Comm Cable: 2
Connector Style: Flex Cable Lug
Connector Type: Compression
Country of Origin: India
DLO: (125)
Description: Copper Flex Cable Short Barrel 1 Hole Compression Lugs #2 Awg 5/16 Stud
Finish: Electro-Tin Plated
Length: 1.80"
Material: High Conductivity Copper
Maximum Voltage: 35KV
Mfg Standard: Ul 486A
No. Mounting Holes: 1
Stud Size: 5/16"
Type: Copper Short Barrel Flex Cable Compression Splices
Ul Listing: cULus
Upc: 601986946148
Warning: Cancer and Reproductive Harm
Wire Range: 2
Wire Size: 2
