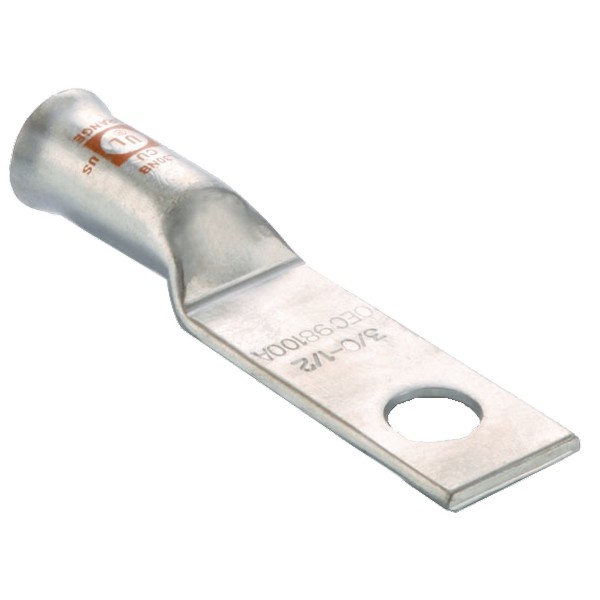

Morris 94671 One Hole Copper Compression Lugs provide fast and reliable electrical cable terminations, making them an essential component for any professional or DIY electrical project. Designed with a flared belled entry, these lugs allow for easy insertion of fine strand flexible cables, including Class G, H, I, K (Battery), M (Welding), and DLO cable constructions. Crafted from high-conductivity seamless electrolytic copper, these compression lugs feature uniform bright electro-tin plating, which not only resists corrosion but also minimizes contact resistance to maximize electrical conductivity. Each lug includes crimp marks that indicate proper crimp locations, ensuring accuracy during installation. For added convenience, the lugs are marked with die index and color codes for easy identification and are UL 486A listed, providing assurance of quality and safety. Rated for up to 35KV when properly installed, these lugs are cULus listed, meeting stringent regulatory standards. With a single mounting hole and a stud size of 1/2", the Morris 94671 lugs are versatile for various applications. Their compact length of 2.8 inches makes them easy to handle and install, ensuring you have the reliability required for any electrical task.
One Hole Copper Compression Lugs for fast reliable electrical cable terminations.
Barrell Lengeth: Long
Class H: 2/0
Class M: -
Color: Orange
Color Code: Orange
Comm Cable: 3/0
Connector Style: Flex Cable Lug
Connector Type: Compression
Country of Origin: India
DLO: 2/0(325)
Description: Copper Flex Cable Long Barrel 1 Hole Compression Lugs 3/0 Awg 1/2 Stud
Finish: Electro-Tin Plated
Length: 2.8"
Material: High Conductivity Copper
Maximum Voltage: 35KV
Mfg Standard: Ul 486A
No. Mounting Holes: 1
Stud Size: 1/2"
Type: Copper Long Barrel Flex Cable Compression Splices
Ul Listing: cULus
Upc: 601986946711
Warning: Cancer and Reproductive Harm
Wire Range: 3/0
Wire Size: 3/0
