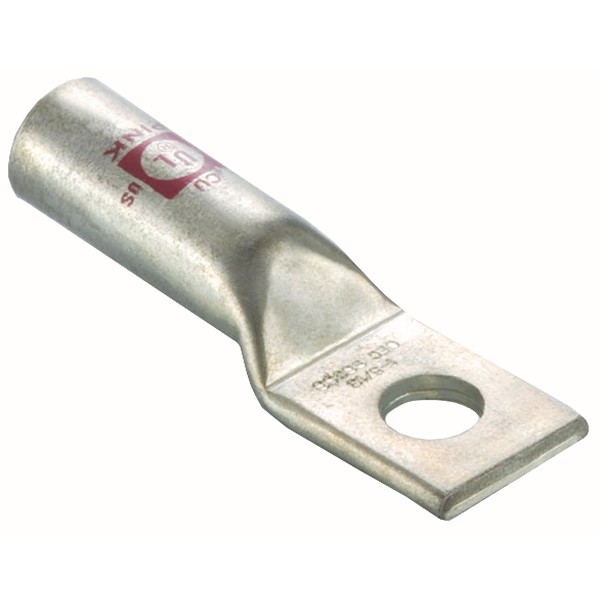

Morris 94868 One Hole Copper Compression Lugs for Reliable Cable Terminations

Morris 94868 One Hole Copper Compression Lugs provide fast and reliable electrical cable terminations, making them an essential component for any electrical installation. Constructed from high-conductivity seamless electrolytic copper, these lugs ensure maximum conductivity and performance. The uniform bright electro-tin plating offers excellent corrosion resistance, effectively reducing contact resistance for enhanced reliability over time. Designed with user convenience in mind, the Morris 94868 features crimp marks that indicate proper crimp locations, ensuring a secure connection every time. The long barrel design accommodates multiple crimps, enhancing versatility in various applications. Each lug is clearly marked with die index and color codes, facilitating easy identification and selection during installation. These compression lugs are UL 486A listed and suitable for applications up to 35KV when properly installed, providing peace of mind regarding safety and compliance. With a stud size of 1/4" and a wire range accommodating 1/0 stranded wire, these lugs are built to meet demanding electrical requirements. Additionally, they are cULus listed for further assurance of quality and performance. The Morris 94868 lugs measure 2.58" in length with an inside diameter of .390" and an outside diameter of .520", making them a reliable choice for your electrical projects.

One Hole Copper Compression Lugs for fast reliable electrical cable terminations.

• UL 486A Listed
• Single Mounting Hole
• Compression Lugs are Marked with Die Index and Color Codes for easy identification
• Long Barrel Accomodates Multiple Crimps
• Our One Hole Copper Compression Lugs are made of high-conductivity Seamless Electrolytic Copper
• Crimp Marks indicate Proper Crimp Locations
• cULus Listed
• Uniform Bright Electro-Tin Plating resists corrosion, reduces contact resistance and maximizes conductivity
• Dimension Measurements = Inches
• Listed for 35KV when properly installed
