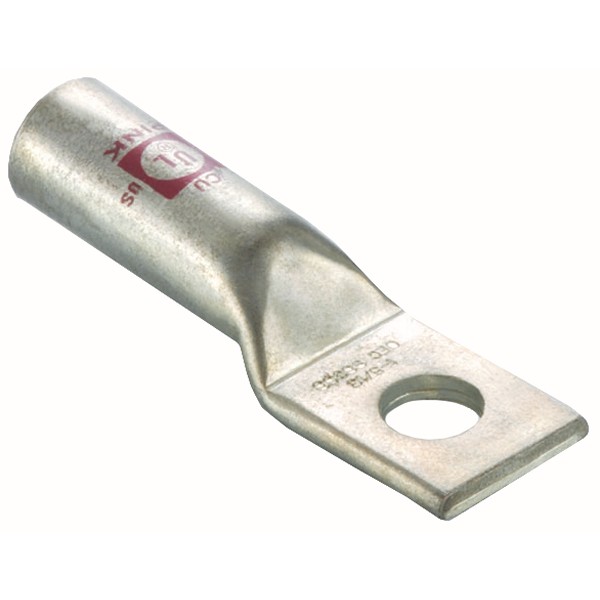

Morris 94870 Copper Compression Lugs for Reliable Electrical Cable Terminations

Morris 94870 One Hole Copper Compression Lugs offer fast and reliable electrical cable terminations, designed to meet the demanding needs of both residential and commercial applications. Constructed from high-conductivity seamless electrolytic copper, these lugs ensure optimal performance with minimal contact resistance. The uniform bright electro-tin plating resists corrosion, further enhancing conductivity and longevity. Featuring a single mounting hole, these compression lugs are easy to install and are marked with crimp marks that indicate proper crimp locations for added convenience. The long barrel design accommodates multiple crimps, making them versatile for various wire sizes. For quick identification, each lug is marked with die index and color codes. Morris 94870 lugs are UL 486A listed and can be utilized safely for up to 35KV when installed correctly. They are also cULus listed, ensuring compliance with stringent safety standards. With a wire range compatible with 2/0 stranded wire, these lugs have an inside diameter of .441 inches, an outside diameter of .563 inches, and a length of 2.64 inches. Choose Morris 94870 for a dependable solution that combines efficiency and safety in electrical cable connections.

One Hole Copper Compression Lugs for fast reliable electrical cable terminations.

• UL 486A Listed
• Single Mounting Hole
• Compression Lugs are Marked with Die Index and Color Codes for easy identification
• Long Barrel Accomodates Multiple Crimps
• Our One Hole Copper Compression Lugs are made of high-conductivity Seamless Electrolytic Copper
• Crimp Marks indicate Proper Crimp Locations
• cULus Listed
• Uniform Bright Electro-Tin Plating resists corrosion, reduces contact resistance and maximizes conductivity
• Dimension Measurements = Inches
• Listed for 35KV when properly installed
