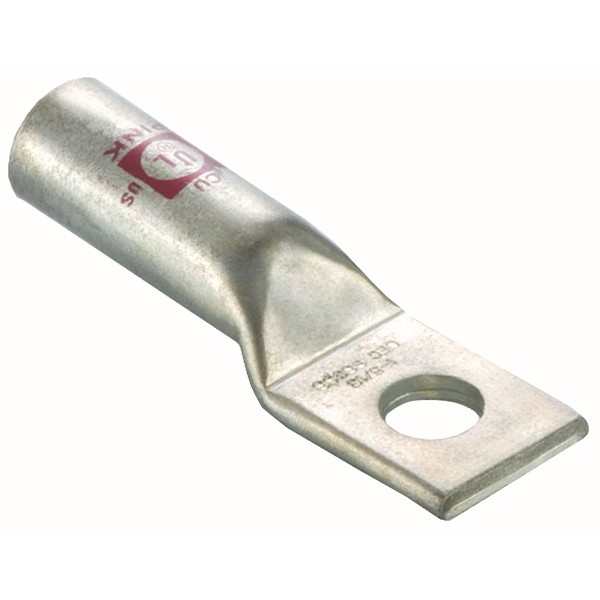

Morris 94907 One Hole Copper Compression Lugs deliver fast and reliable electrical cable terminations, ensuring optimal performance in various applications. Crafted from high-conductivity seamless electrolytic copper, these compression lugs promise excellent conductivity and durability. The uniform bright electro-tin plating not only resists corrosion but also minimizes contact resistance, enhancing overall efficiency. Designed with a single mounting hole, the Morris 94907 lugs feature crimp marks that indicate proper crimp locations, making installation straightforward. Their long barrel accommodates multiple crimps, providing versatility for different wiring needs. Each lug is marked with die index and color codes for easy identification, streamlining your work process. Rated for 35KV when properly installed, these lugs are UL 486A listed and cULus listed, reflecting their compliance with rigorous safety standards. The dimensions include an inside diameter of 1.03 inches, an outside diameter of 1.31 inches, and a length of 5.24 inches, making them suitable for a wire range of 750 MCM. With a stud size of 1/2 inch, the Morris 94907 compression lugs are the reliable choice for professionals seeking dependable electrical connections. Please note the warning regarding cancer and reproductive harm.
One Hole Copper Compression Lugs for fast reliable electrical cable terminations.
Barrel Length: Long
Color: Black
Color Code: Black
Connector Style: Lug
Connector Type: Compression
Country of Origin: India
Description: Copper Long Barrel 1 Hole Compression Lugs 750 MCM - 1/2 Stud
Finish: Electro-Tin Plated
Hole Size: 1/2
Inside Diameter: 1.03"
Length: 5.24"
Material: High Conductivity Copper
Maximum Voltage: 35KV
Mfg Standard: Ul 486A
Number of Mounting Holes: 1
Outside Diameter: 1.31"
Stud Size: 1/2"
Type: Copper Long Barrel 1 Hole Compression Lugs
Ul Listing: cULus
Upc: 601986949071
Warning: Cancer and Reproductive Harm
Wire Range: 750 MCM
Wire Size: 750 MCM
