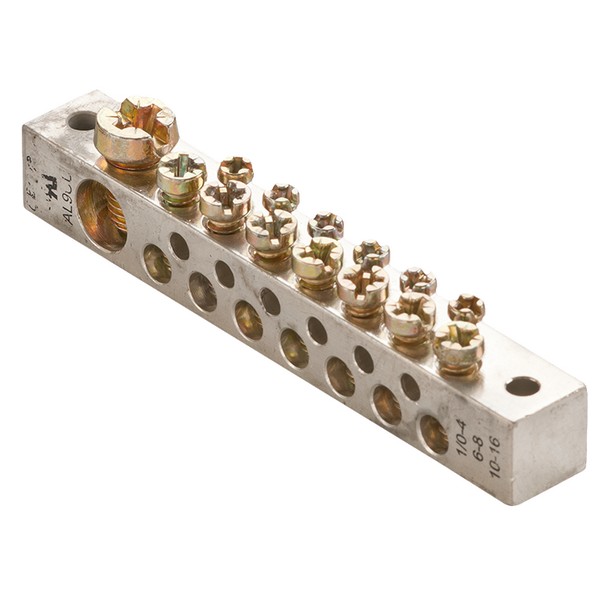

Morris 95209 Multi-Combination Ground/Neutral Bars are designed to meet the diverse needs of electrical installations, offering multiple wire combinations for enhanced flexibility. Constructed from 6060-T6 tin-plated aluminum, these ground and neutral bars ensure durability and excellent conductivity. With a voltage rating of 600 volts and a temperature rating of 90°C, they are built to withstand demanding conditions in various applications. The bars feature a screw material made from SAE1008 zinc-plated steel, providing reliable connections. They are UL 486B listed, ensuring compliance with rigorous safety standards. The conductor entry holes are available in four distinct positions (A, B, C, D), accommodating a range of conductor sizes from 1/0 to #12. Measuring just 0.50" in height, length, and width, these compact bars are versatile for installations with limited space. Each bar includes a total of 20 holes for conductors, with specific distributions (1, 1, 9, 9), allowing for efficient wiring management. With a mount hole position of 4.86", installation is straightforward. Morris 95209 Multi-Combination Ground/Neutral Bars are an essential component for any professional electrician or knowledgeable homeowner looking for reliable and efficient grounding solutions.
Multi-Combination Ground/Neutral Bars have multiple wire combinations
Conductor Entry Hole: A, B, C, D
Conductor Range: 1/0, #2, #8, #10, #12
Connector Type: Neutral Bar
Country of Origin: India
Description: End Feed Multi-Combination Ground/Neutral Bars
Height: .50"
Length: .50"
Material: Aluminum
Mount Hole Position: 4.86"
Total NOS of Holes For Conductor: 1, 1, 9, 9
Type: Multi-Combination Ground/Neutral Bars
Ul Listing: cULus
Upc: 601986952095
Warning: Cancer and Reproductive Harm
Width: .50"
