Morris 96102 Anyone can use our Above Ground Connector

Morris 96102 Above Ground Connector streamlines your electrical installations with its innovative design, allowing for quick and efficient setup in just minutes. This connector eliminates the need for wire stripping, connecting, and taping of split bolts, which can save significant man-hours on the job. Engineered for use on energized circuits, the Morris 96102 ensures minimal disruption as it can be installed without requiring power shutdowns. Its versatility extends to overhead services, insulated and bare mains, street lighting, and non-tension splicing, making it an invaluable tool for various applications. Featuring a double shear-head bolt, this connector guarantees correct torque tightening every time, ensuring a secure connection while preventing hot spots or loose wires. The innovative design requires no cable stripping; simply insert the jacketed cable into the entry port and tighten with a 1/2" socket. Constructed from high-strength fiber-reinforced thermoplastic and galvanized steel bolts, the Morris 96102 offers a corrosion-free connection suitable for hot, cold, damp, and salty environments. Its water-tight seal protects connections from oxygen and moisture, ensuring long-lasting performance. With a main range of 2/0 - 6 and a tap range of 8 - 14, this connector meets a variety of installation needs, making it a reliable choice for professionals.

Anyone can use our Above Ground Connector

• No cable stripping required, simply insert the jacketed cable into the entry port & tighten with a 1/2" 6 point socket

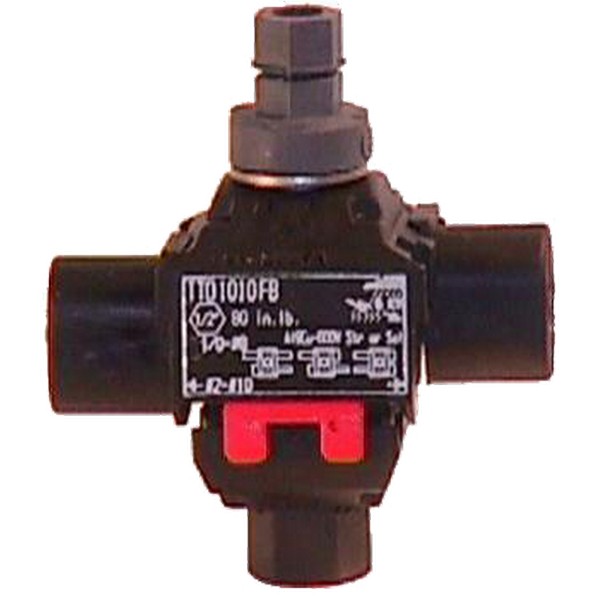

• Red Turbo spacer allows tap side to remain open while you hand tighten the above ground connector on the main wire (all models except 96102 & 96104)
• Double shear-head bolt guarantees correct torque tightening every time, ensuring a quality connection, & eliminating the possibility of hot spots, damaged wires or loose connections
• The connector bodies are made from high-strength fiber-reinforced thermoplastic and galvanized steel bolts
• Can be installed on energized conductors, however, the tap must not be under load.
• Overhead services - both insulated & bare mains, above grade URD services, street lighting, non-tension splicing & tapping, insulated replacement for split bolts, tapping without cutting the main, gutter taps.
• Model #'s: 96102 (TTD0510F), 96104 (TTD0810F), 96106 (TTD1010FBTUNI), 96108 (TTD1510FT), 96110 (TTD1810XFBTUNI), 96114 (TTD2710FBTUNI), 96116 (TTD4010FBT), 96118 (TTD4310FBT), 96120 (TTD4510FT), 96122 (TTD5510FBT)
• Connector Installs In Just Minutes Saving Many Man-Hours On The Job
• Above ground connector can be installed on Energized Circuits eliminating Power Shutdowns
• Eliminates Wire Stripping, Connecting & Taping of Split Bolts and Adding Inhibitor
• Corrosion-free connection is good for hot, cold, damp, & salty connections. Properly installed the connector seals water-tight. This is accomplished by a sealant tank, that during installation is compressed and forces sealant out to protect the connection from oxygen and water. Copper teeth are tin plated, shell is high strength UV resistant thermoplastic insulating material, steel bolts are galvanized.
• The bolt and all external parts of the connector are completely isolated from energized parts and the bolt is covered by the plastic shear-head. The installer has no contact at any point with an energized part.
• Blue Rubber Insert recreates insulation when used on bare wire. Used to avoid any damage on neutral messenger. (Only on Models 96106, 96110, 96112, 96114)
