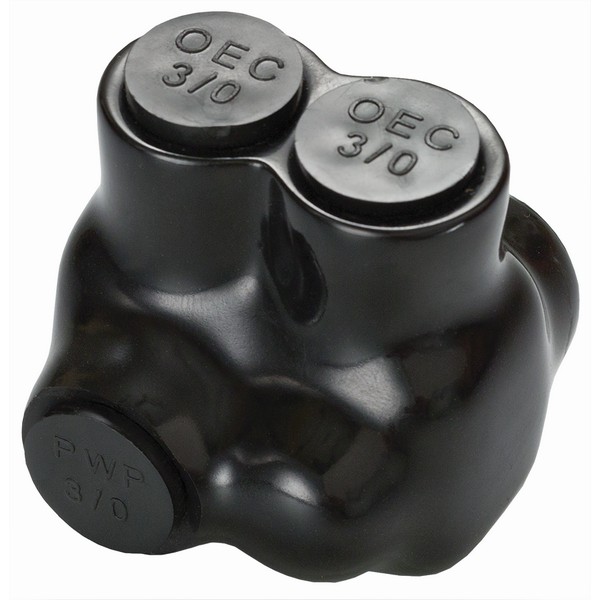

Morris 97056 Offset Entry Insulated Connectors make splicing easy and secure, providing reliable performance for electrical applications. Constructed from high-quality 6061-T6 aluminum, these dual-rated connectors are compatible with both copper and aluminum wires, ensuring versatility for various projects. The rugged high-dielectric rubber/vinyl coating provides excellent insulation, enhancing safety and durability in demanding environments. Designed with user convenience in mind, these connectors are pre-filled with an oxide inhibitor to prevent corrosion and ensure optimal conductivity. The easy re-entry feature allows for quick changes, inspections, or troubleshooting, making maintenance a breeze. Each plug is clearly marked with the maximum wire size for effortless identification, streamlining the installation process. With a temperature range of –49°F to 194°F (–45° to 90°C) and a rating of up to 600 volts, the Morris 97056 connectors are suitable for indoor use only and comply with ANSI C119.4 and cULus 486b standards, ensuring peace of mind in performance and safety. The dimensions of the connector are 1.93" in height, 1.69" in length, and 1.80" in width, with a wire range accommodating sizes from 2/0 to 6. Choose Morris for a dependable solution to your electrical connection needs.
Offset Entry Insulated Connectors make splicing easy and secure.
Al9cu Dual Rating: AL9CU Dual Rated
Allen Hex: 3/16"
Color: Black
Connector Type: OffSet Entry Splice
Country of Origin: India
Description: Black Insulated 2 Conductor OffSet Entry Splice 2/0-6
Height: 1.93"
Insulation Type: Rubber
Length: 1.69"
Material: 6061-T6 Aluminum
Maximum Voltage: 600
Mfg Standard: UL 486B
Temperature Rating: -49oF to 194oF (-45o to 90oC)
Type: Black Insulated 2 Conductor OffSet Entry Splice
Ul Listing: cULus
Upc: 601986970563
Warning: Cancer and Reproductive Harm
Width: 1.80"
Wire Range: 2/0 - 6
Wire Size: 2/0 - 6
